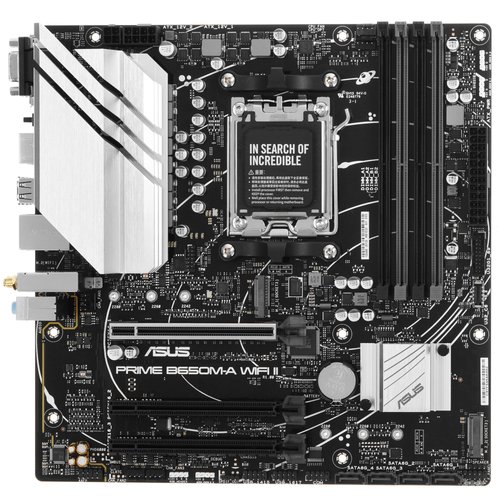

Motherboard ASUS PRIME B650M-A WIFI II

#5094783

Motherboard ASUS PRIME B650M-A WIFI II

[AM5, AMD B650, 4xDDR5-5200 MHz, 3xPCI-Ex16, 2xM.2, Micro-ATX] details

2 099 000 UZS
Buy
Avail in 2 shops
Warranty: 36 mos.

Accessories

  • Characteristics
  • Feedback 77
  • Service rating (Reliability assessment)
  • Instructions and files

Characteristics Motherboard ASUS PRIME B650M-A WIFI II

General parameters

Type
motherboard
Model
ASUS PRIME B650M-A WIFI II
Series
ASUS PRIME
Color
black
Release Year
2023

Form Factor and Dimensions

Form Factor
Micro-ATX
Rear I/O Connectors (Back-Connect)
none
Height
244 mm
Width
244 mm

Processor and Chipset

Socket
AM5
AMD Chipset
AMD B650
Compatible AMD Processor Cores
Grado, Raphael

Memory

Supported Memory Type
DDR5
Supported Memory Form Factor
DIMM
Number of RAM Slots
4
Number of Memory Channels
2
Max RAM Volume
192 GB
Maximum Memory Frequency (JEDEC/No Overclock)
5200 MHz
Overclocked RAM Frequency
6000 MHz, 7000 MHz, 6800 MHz, 6200 MHz, 6400 MHz, 5400 MHz, 5800 MHz, 5600 MHz, 7600 MHz, 6600 MHz, 7200 MHz

Expansion Slots

PCI Express Version
4.0
PCIe x16 Slots
1 x PCIe 4.0 (supported mode: x16), 2 x PCIe 4.0 (supported mode: x1)
Support For SLI/CrossFire
none
Multi-GPU Support (SLI/CrossFire) Card Count
0 pcs
Slot Count: PCI-E x1
0
Other Expansion Slots
none

Drive Controllers

Support For NVMe
yes
PCI Express SSD Version
5.0
M.2 Connector Count
2
M.2 (M) Connectors, CPU PCIe Lanes
1 x 2242/2260/2280 (PCIe 5.0 x4)
M.2 (M) Connectors, Chipset PCIe Lanes
1 x 2242/2260/2280 (PCIe 4.0 x4)
SATA Port Count
4
SATA RAID Mode
0, 10, 1
NVMe RAID Mode
0, 10, 1
Other Drive Connectors
none

Rear Panel Ports

USB Type-A Ports
4 x USB 2.0, 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1
USB Type-C Ports
none
Video Outputs
1 x HDMI, 1 x VGA (D-Sub), 1 x DisplayPort
RJ-45 Ethernet Port Count
1
Analog Audio Connector Count
3
Digital Audio Ports (S/PDIF)
none
SMA Connectors (for Wi-Fi Antenna)
yes
PS/2 Ports
combined

Board Connectors

Internal USB Type-A Connectors
2 x USB 2.0 (9 pin), 1 x USB 3.2 Gen 1 (19 pin)
Internal USB Type-C Connectors
1 x USB 3.2 Gen 1
CPU Cooler Power Connectors
2 x 4-pin (cooler)
Case Fan Connectors (4 pin)
3
Case Fan Connectors (3 pin)
0
5V-D-G (3 pin) ARGB Lighting Connectors
3
12V-G-R-B (4 pin) RGB Lighting Connectors
1
M.2 Key E Connector for Wireless Modules
yes
RS-232 (COM) Connector
yes
LPT Port
none

Audio

Sound Scheme
7.1

Network

Network Adapter Speed
2.5 Gbit/s
Wi-Fi Standard
6 (802.11ax)
Bluetooth Version
5.2

Power and Cooling

Main Power Connector
24 pin
CPU Power Connector
8 pin + 4 pin
Number of Power Phases
10
Passive Cooling
VRM area, chipset
Active Cooling
none

Additional Information

Buttons on the Motherboard
BIOS FlashBack button
Backlit Board Elements
none
Software for RGB Lighting Synchronization
ASUS Aura Sync
Number of Layers in a PCB Stack-Up
6
Features, Additional
AMD EXPO support
Package Contents
rear trim, wi-fi antenna, mounting hardware for M.2 connector, documentation, 2 x SATA cable

Packaged Dimensions and Weight

Box Length
27.5 cm
Box Width
27.4 cm
Box Height
7 cm
Weight Boxed
1.4 kg

Description

The ASUS PRIME B650M-A WIFI II motherboard is designed for building workstations with AMD Ryzen 7000/8000/9000 series processors. It is equipped with 4 slots supporting up to 192 GB of DDR5 RAM and supports OptiMem II overclocking technology. Three PCI-E x16 expansion slots allow installation of a discrete graphics adapter and storage cards. For building a high-capacity storage subsystem with SSD/HDD drives, 2 M.2 connectors and 4 SATA connectors are provided.
The compact Micro-ATX form factor allows efficient use of space inside the PC case. For wireless Internet connectivity, the ASUS PRIME B650M-A WIFI II board integrates a Wi-Fi 6 (802.11ax) module. A reliable wired connection is delivered by an integrated 2.5 Gbps LAN adapter. Aluminum heatsinks keep hardware components operating at low temperatures.
