Motherboard GIGABYTE B550M K

#5402263

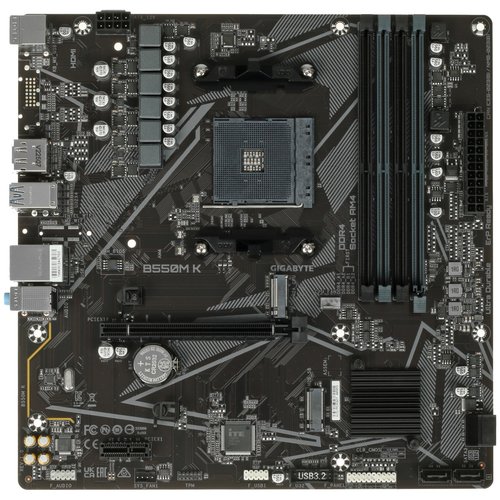

Motherboard GIGABYTE B550M K

[AM4, AMD B550, 4xDDR4-3200 MHz, 1xPCI-Ex16, 2xM.2, Micro-ATX] details

4.6 | 1357

Not on sale

Accessories

  • Characteristics
  • Feedback 1357
  • Instructions and files

Characteristics Motherboard GIGABYTE B550M K

General parameters

Type
motherboard
Model
GIGABYTE B550M K
Series
GIGABYTE Ultra Durable
Color
black
Release Year
2023

Form Factor and Dimensions

Form Factor
Micro-ATX
Rear I/O Connectors (Back-Connect)
none
Height
244 mm
Width
244 mm

Processor and Chipset

Socket
AM4
AMD Chipset
AMD B550
Compatible AMD Processor Cores
Renoir, Vermeer, Matisse, Cezanne

Memory

Supported Memory Type
DDR4
Supported Memory Form Factor
DIMM
Number of RAM Slots
4
Number of Memory Channels
2
Max RAM Volume
128 GB
Maximum Memory Frequency (JEDEC/No Overclock)
3200 MHz
Overclocked RAM Frequency
4400 MHz, 3866 MHz, 4600 MHz, 4266 MHz, 3466 MHz, 3400 MHz, 4000 MHz, 4733 MHz, 4133 MHz, 3733 MHz, 3600 MHz

Expansion Slots

PCI Express Version
4.0
PCIe x16 Slots
1 x PCIe 4.0 (supported mode: x16)
Support For SLI/CrossFire
none
Multi-GPU Support (SLI/CrossFire) Card Count
0 pcs
Slot Count: PCI-E x1
1

Drive Controllers

Support For NVMe
yes
PCI Express SSD Version
4.0
M.2 Connector Count
2
M.2 (M) Connectors, CPU PCIe Lanes
1 x 2280 (SATA/PCIe 4.0 x4)
M.2 (M) Connectors, Chipset PCIe Lanes
1 x 2280 (PCIe 3.0 x2)
SATA Port Count
4
SATA RAID Mode
0, 10, 1
NVMe RAID Mode
none
Other Drive Connectors
none

Rear Panel Ports

USB Type-A Ports
4 x USB 2.0, 4 x USB 3.2 Gen 1
USB Type-C Ports
none
Video Outputs
1 x HDMI, 1 x DisplayPort
RJ-45 Ethernet Port Count
1
Analog Audio Connector Count
3
Digital Audio Ports (S/PDIF)
none
SMA Connectors (for Wi-Fi Antenna)
none
PS/2 Ports
combined

Board Connectors

Internal USB Type-A Connectors
1 x USB 2.0 (9 pin), 1 x USB 3.2 Gen 1 (19 pin)
Internal USB Type-C Connectors
none
CPU Cooler Power Connectors
1 x 4 pin (cooler)
Case Fan Connectors (4 pin)
1
Case Fan Connectors (3 pin)
0
5V-D-G (3 pin) ARGB Lighting Connectors
0
12V-G-R-B (4 pin) RGB Lighting Connectors
0
M.2 Key E Connector for Wireless Modules
none
RS-232 (COM) Connector
none
LPT Port
none

Audio

Sound Scheme
7.1

Network

Network Adapter Speed
1 Gbit/s
Wi-Fi Standard
none
Bluetooth Version
none
Wireless Adapter
none

Power and Cooling

Main Power Connector
24 pin
CPU Power Connector
1 x 8 pin
Number of Power Phases
6
Passive Cooling
chipset
Active Cooling
none

Additional Information

Buttons on the Motherboard
none
Backlit Board Elements
none
Software for RGB Lighting Synchronization
none
Features, Additional
Intel XMP support
Package Contents
rear trim, documentation, SATA cable

Packaged Dimensions and Weight

Box Length
27 cm
Box Width
27 cm
Box Height
7 cm
Weight Boxed
1.2 kg

Description

The GIGABYTE B550M K motherboard offers the qualities of a productive and reliable foundation for a universal system unit. It is made in a compact Micro-ATX form factor and supports AMD processors (AM4 socket). PCI-Ex16, DIMM DDR4, M.2, and SATA connectors are provided for connecting a graphics card, RAM modules, and storage devices.
The GIGABYTE B550M K is equipped with a 1 Gbps network adapter. Peripheral ports include USB, DisplayPort and HDMI video outputs, and audio jacks. A reliable element base with tested components guarantees exceptional stability, while proprietary utilities help monitor parameters and configure settings.
