Characteristics PC case Cougar MX430 Air RGB [3851C60.0007] white
General parameters
Type
PC case
Model
Cougar MX430 Air RGB
Manufacturer Code
[3851C60.0007]
Form Factor and Dimensions
Housing Size Standard
Mid-Tower
Motherboard Orientation
vertical
Depth
371 mm
Width
217 mm
Height
467 mm
Weight
5 kg
Appearance
Main Color
white
Extra Colors
black
Housing Material
steel, glass, plastic
Metal Sheet Thickness
0.6 mm
Side Panel Window
left
Window Material
tempered glass
Front Panel Material
plastic
LCD Screen
none
Backlight Type
ARGB
Light Source
fan, housing elements
Backlight Connector
3 pin 5V-D-G (ARGB)
Backlight Control Method
button on the case
Compatibility
Compatible Board Form Factor
Standard-ATX, Micro-ATX, Mini-ITX
Compatible Motherboard Form Factor with Back-Connect I/O
none
Power Supply Form Factor
ATX
Power Supply Placement
lower
Hidden Power Supply
yes
Max Power Supply Length
160 mm
Horizontal Expansion Slots
7
Vertical Expansion Slots
0
Max GPU Length
320 mm
Max CPU Cooler Height
175 mm
Number of 2.5" Drive Bays
3 pcs
Number of 3.5" Drive Bays
1 pcs
Number of 2.5"/3.5" Drive Bays
1 pcs
Number of External 3.5" Bays
0 pcs
Number of External 5.25" Bays
0 pcs
Cooling
Fans Included
3 x 120 mm
Front Fan Support
2 x 140 or 3 x 120 mm
Rear Fan Support
1 x 140 or 1 x 120 mm
Top Fan Support
2 x 140 or 2 x 120 mm
Bottom Fan Support
none
Side Fan Support
none
Liquid Cooling Support
yes
Front Mounting Size for AIO Radiator
280 mm, 140 mm, 120 mm, 240 mm
Liquid Cooling Radiator Top Mounting Size
120 mm, 240 mm
Rear Mounting Size for AIO Radiator
140 mm, 120 mm
Front Panel Connectors and Interfaces
I/O Panel Location
top
USB Type-A Ports
2 x USB 3.2 Gen 1, 1 x USB 2.0
USB Type-C Ports
none
Audio Connectors
3.5 mm jack (microphone), 3.5 mm jack (audio)
Built-In Card Reader
none
Maintenance
Side Panels Locks
rear screws
CPU Cooler Mounting Cutout
yes
Back Panel Cable Management
yes
Dust Filter
top, bottom, front
Additional Information
Built-In Power Supply
0 W
Quiet and Vibration-Dampening Cases
none
Package Contents
documentation, fastener kit
Description

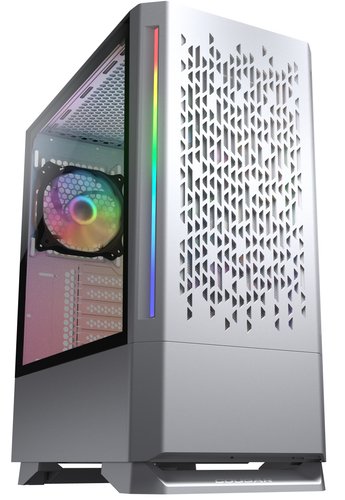

The Cougar MX430 Air RGB [3851C60.0007] white case is a prime example of combining advanced technology with flawless aesthetics. The model is decorated with stylish ARGB lighting that can be controlled via a button. The light sources include not only the case fans, but also LED strips framing the front panel. The visual effect of the lighting is enhanced by patterned ventilation holes on the front of the case.
The Cougar MX430 Air RGB [3851C60.0007] case conforms to the Mid-Tower form factor. The model is suitable for building a powerful gaming PC or a versatile high-performance desktop. Liquid cooling system installation is supported. The case is compatible with graphics cards up to 320 mm in length. The maximum supported CPU cooler height is 175 mm. Compatible motherboard form factors are Micro-ATX, Mini-ITX, and Standard-ATX. The power supply is not included. You will need an ATX power supply with a length not exceeding 160 mm. A distinctive feature of the package is the inclusion of cable ties.
