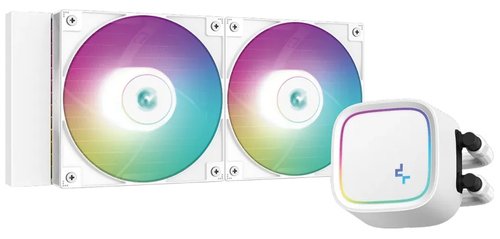

Cooling system DEEPCOOL LE520 WH  white

#5415061

Cooling system DEEPCOOL LE520 WH white

[120 mm - two sections, pump slot - 3 pin, heat sink - aluminium, TDP - 220 W, ARGB lighting] details

1 000 000 UZS
Buy
Avail in 1 shop
Color
  • Characteristics
  • Feedback 486
  • Instructions and files

Characteristics Cooling system DEEPCOOL LE520 WH white

Classification

Type
cooling system
Model
DEEPCOOL LE520 WH
Manufacturer Code
[R-LE520-WHAMMN-G-1]
Serviceable Liquid Cooling System
none

Appearance

Main Color
white
Backlight Type
ARGB
Light Source
fan, water block
Backlight Connector
3 pin 5V-D-G (ARGB)
LCD Screen
none

Water Block

Intended Use
for processor
Socket
AM5, LGA 1150, LGA 1700, LGA 1151, AM4, LGA 1200, LGA 1151-v2, LGA 1155
Water Block Material
copper
Water Block Dimensions
91 × 80 × 52 mm

Radiator

Radiator Mounting Size
120 mm - two sections
Thermal Dissipation Power, TDP
220 W
Radiator Length
282 mm
Heatsink Width
120 mm
Radiator Thickness
27 mm
Heatsink Material
aluminium

Fans

Number of Fans Included
2
Fan Sizes
120 x 120 mm
Fan Bearing Type
slip (hydrodynamic)
Minimum Rotational Speed
500 RPM
Max RPM
2250 RPM
Fan Rotation Speed Adjustment
automatic (PWM)
Max Noise Level
32.9 dB
Max Air Flow
85.85 CFM
Max Static Pressure
32.1 Pa
Fan Connector
4 pin

Pump

Pump Noise Level
17.8 dB
Pump Rotation Speed
2400 RPM
Pump Connector
3 pin

Tubes

Length of the Tubes
410 mm
Tubes Material
IIR (butyl rubber), EPDM/PP (ethylene propylene diene monomer rubber)
Transparent Tubes
none

Additional Information

Thermal Paste Included
applied to the base

Description

The DEEPCOOL LE520 WH liquid cooling system is manufactured as a maintenance-free component compatible with CPUs on AM4, AM5, LGA 1150, or LGA 1151 sockets. The liquid cooling system features an aluminum radiator measuring 282×120×27 mm and a copper water block with a pump that is mounted directly on the CPU package. The water block and radiator are connected by 410 mm flexible tubes for liquid coolant circulation.
Two 120x120 mm fans are mounted on the DEEPCOOL LE520 WH radiator, supporting rotation speeds of 500-2250 rpm and powered via 4-pin connectors. ARGB LED lighting elements are integrated into the fan frames and the pump. The cooling system comes complete with a container of thermal paste used when installing the module onto the processor.
