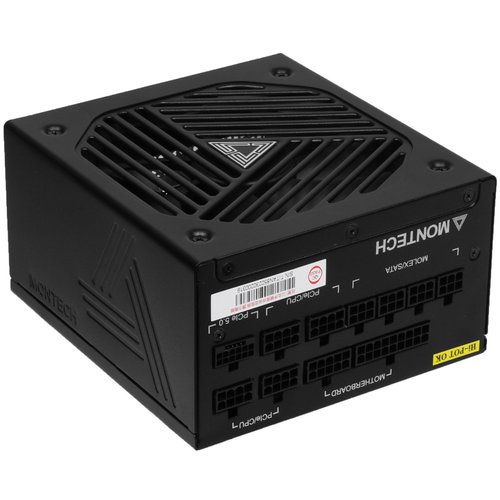

Power supply MONTECH TITAN GOLD 850 [TIS0124] black

#5086134

Power supply MONTECH TITAN GOLD 850 [TIS0124] black

[850 W, 80+ Gold, APFC, 20+4 pin, 2 x 4+4 pin CPU, 12 SATA, 16 pin (12VHPWR), 4 x 6+2 pin PCI-E] details

4.88 | 798
Good reliability
1 890 000 UZS
Buy
Avail in 1 shop
Warranty: 99 mos.

Accessories

  • Characteristics
  • Feedback 798
  • Service rating (Reliability assessment)
  • Instructions and files

Characteristics Power supply MONTECH TITAN GOLD 850 [TIS0124] black

General parameters

Type
power supply
Model
MONTECH TITAN GOLD 850
Manufacturer Code
[TIS0124]
Nominal Power
850 W

Appearance

Form Factor
ATX
Color
black
Detachable Cables
fully modular
Cable Braiding
none
Wire Colors
black
Backlight Type
none

Cables and Connectors

Main Power Connector
20+4 pin
CPU Power Connectors
2 x 4+4 pin
Graphics Card Power Connectors (PCI-E)
16 pin (12VHPWR), 4 x 6+2 pin
15-pin SATA Connector Count
12
4-pin Molex Connector Count
4
4 pin Floppy Connector
none
Main Power Cable Length
600 mm
CPU Power Cable Length
700 mm
PCI-E Power Cable Length
500 mm, 600 mm
SATA Power Cable Length
500 mm
Molex Power Cable Length
500 mm

Electrical Parameters

12V Line Power
850 W
Current on the +12 V Line
12V1 70.8A
Current on the +3.3 V Line
22 A
Current on the +5 V Line
22 A
Standby Power Supply Current (+5V Standby)
3 A
Current on the -12 V Line
0.3 A
AC Input Voltage Range
100-240 V 50/60 Hz

Cooling System

Cooling System
active
Fan Sizes
135 x 135 mm
Max RPM
2300 RPM
Speed Control
until full stop
Fan Mode Switch (Hybrid Mode)
yes
Max Noise Level
35.78 dB

Certification

80 PLUS Efficiency Rating
Gold
Power Factor Corrector (PFC)
active
Standarts Compliance
ATX 12V 3.0
Protection
OPP, OCP, OTP, SCP, UVP, OVP

Additional Information

Power Cable Included
yes
Package Contents
case, cable kit, documentation
Features
Japanese capacitors

Dimensions and Weight

Length
150 mm
Width
160 mm
Height
86 mm
Weight
1.76 kg

Description

The Montech TITAN GOLD 850 [TIS0124] power supply is a high-quality component that provides stable and efficient power to computer systems. It delivers 850 Watts of power, ensuring sufficient output for high-load configurations. The device features high operating efficiency (up to 92%), reducing electricity costs and improving overall system reliability.
The Montech TITAN GOLD 850 [TIS0124] is suitable for use in gaming and professional configurations requiring high power and operational reliability. It is an excellent choice for those seeking a reliable and efficient power supply unit for their system. The device features protection against overload, overvoltage, short circuit, and overheating, ensuring the safe operation of the build.
