1 x PCIe 3.0 (supported mode: x16), 1 x PCIe 3.0 (supported mode: x4)
Support For SLI/CrossFire
CrossFire X
Multi-GPU Support (SLI/CrossFire) Card Count
2 pcs
Slot Count: PCI-E x1
4
Drive Controllers
Support For NVMe
yes
PCI Express SSD Version
3.0
M.2 Connector Count
2
M.2 (M) Connectors, CPU PCIe Lanes
1 x 2242/2260/2280 (PCIe 3.0 x4)
M.2 (M) Connectors, Chipset PCIe Lanes
1 x 2230/2242/2260/2280/22110 (SATA/PCIe 3.0 x2)
SATA Port Count
6
SATA RAID Mode
0, 10, 1
NVMe RAID Mode
none
Other Drive Connectors
none
Rear Panel Ports
USB Type-A Ports
2 x USB 2.0, 4 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2
USB Type-C Ports
1 x USB 3.2 Gen 2
Video Outputs
1 x HDMI, 1 x VGA (D-Sub), 1 x DisplayPort
RJ-45 Ethernet Port Count
1
Analog Audio Connector Count
3
Digital Audio Ports (S/PDIF)
none
SMA Connectors (for Wi-Fi Antenna)
none
PS/2 Ports
combined
Board Connectors
Internal USB Type-A Connectors
2 x USB 2.0 (9 pin), 1 x USB 3.2 Gen 1 (19 pin)
Internal USB Type-C Connectors
none
CPU Cooler Power Connectors
1 x 4 pin (cooler), 1 x 4-pin (cooler/pump)
Dual-Purpose Fan/Pump Connectors (4-pin)
3
Case Fan Connectors (3 pin)
0
5V-D-G (3 pin) ARGB Lighting Connectors
1
12V-G-R-B (4 pin) RGB Lighting Connectors
2
M.2 Key E Connector for Wireless Modules
none
RS-232 (COM) Connector
yes
LPT Port
none
Audio
Sound Scheme
7.1
Audio Adapter Chipset
Realtek ALC892/ALC897
Network
Network Adapter Speed
1 Gbit/s
Network Adapter
Realtek RTL8111H
Wi-Fi Standard
none
Bluetooth Version
none
Wireless Adapter
none
Power and Cooling
Main Power Connector
24 pin
CPU Power Connector
1 x 8 pin
Number of Power Phases
10
Passive Cooling
VRM area, chipset
Active Cooling
none
Additional Information
Buttons on the Motherboard
none
Backlit Board Elements
none
Software for RGB Lighting Synchronization
ASRock Polychrome SYNC
Features, Additional
ELNA audio capacitors
Package Contents
rear trim, mounting hardware for M.2 connector, documentation, 2 x SATA cable, software disk
Packaged Dimensions and Weight
Box Length
34 cm
Box Width
27 cm
Box Height
6 cm
Weight Boxed
1.32 kg
Description

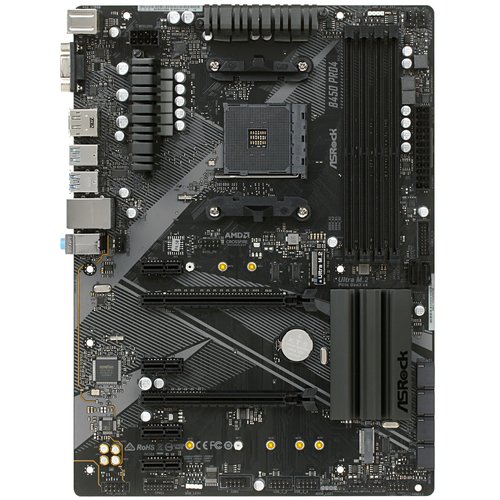

Thanks to its capabilities, the ASRock B450 Pro4 R2.0 motherboard can serve as an excellent foundation for a powerful computer that will help you easily handle any, even the most demanding tasks. The model is designed in the Standard-ATX form factor, which distinguishes it with broad configuration options. In addition, the platform features an attractive appearance that combines premium materials, strict colors, and expressive body lines.
The ASRock B450 Pro4 R2.0 motherboard is based on the AMD B450 chipset and uses the AM4 socket for processor installation. Thanks to the presence of 2 PCI-E 3.0 x16 slots and CrossFire X technology support, multiple graphics cards can be installed simultaneously. Furthermore, up to 128 GB of temporary memory can be used via 4 DIMM slots. To store large amounts of data, up to 4 SATA drives can be utilized in combination with 2 M.2 drives.
The motherboard also stands out for its networking capabilities. In particular, the model is equipped with a powerful module for comfortable network operation. Various ports are provided on the board's I/O panel for peripherals, including HDMI, DisplayPort, and VGA (D-Sub). High-quality audio reproduction is delivered by the Realtek HD Audio module supporting 7.1-channel sound. The motherboard comes with a set of cables, fasteners, and a software disc.
