Motherboard GIGABYTE Z790 EAGLE

#5608105

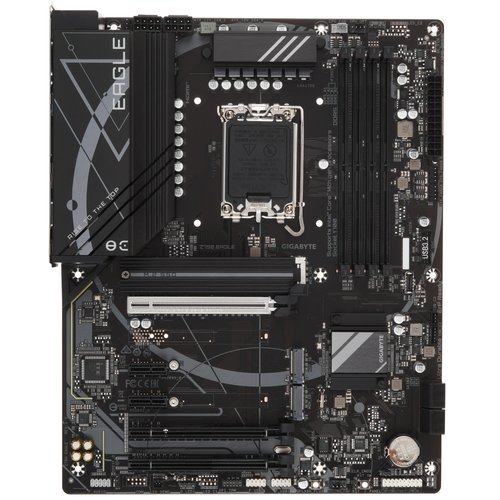

Motherboard GIGABYTE Z790 EAGLE

[LGA 1700, Intel Z790, 4xDDR5-5600 MHz, 3xPCI-Ex16, 3xM.2, Standard-ATX] details

4.87 | 30
Excellent reliability
2 499 000 UZS
Buy
Avail in 1 shop
Warranty: 36 mos.

Accessories

  • Characteristics
  • Feedback 30
  • Service rating (Reliability assessment)
  • Instructions and files

Characteristics Motherboard GIGABYTE Z790 EAGLE

General parameters

Type
motherboard
Model
GIGABYTE Z790 EAGLE
Series
GIGABYTE EAGLE
Color
black
Release Year
2024

Form Factor and Dimensions

Form Factor
Standard-ATX
Height
305 mm
Width
244 mm

Processor and Chipset

Socket
LGA 1700
Intel Chipset
Intel Z790
Compatible Intel Processor Cores
Alder Lake, Raptor Lake Refresh, Raptor Lake

Memory

Supported Memory Type
DDR5
Supported Memory Form Factor
DIMM
Number of RAM Slots
4
Number of Memory Channels
2
Max RAM Volume
256 GB
Maximum Memory Frequency (JEDEC/No Overclock)
5600 MHz
Overclocked RAM Frequency
6000 MHz, 7000 MHz, 6800 MHz, 7400 MHz, 6200 MHz, 6400 MHz, 5800 MHz, 7600 MHz, 6600 MHz, 7200 MHz

Expansion Slots

PCI Express Version
5.0
PCIe x16 Slots
1 x PCIe 4.0 (supported mode: x4), 1 x PCIe 5.0 (supported mode: x16), 1 x PCIe 3.0 (supported mode: x1)
Support For SLI/CrossFire
none
Multi-GPU Support (SLI/CrossFire) Card Count
0 pcs
Slot Count: PCI-E x1
2

Drive Controllers

Support For NVMe
yes
PCI Express SSD Version
4.0
M.2 Connector Count
3
M.2 (M) Connectors, CPU PCIe Lanes
1 x 2280/22110 (PCIe 4.0 x4)
M.2 (M) Connectors, Chipset PCIe Lanes
1 x 2280 (SATA/PCIe 4.0 x4), 1 x 2280 (PCIe 4.0 x4)
SATA Port Count
4
SATA RAID Mode
0, 10, 5, 1
NVMe RAID Mode
0, 10, 5, 1
Other Drive Connectors
none

Rear Panel Ports

USB Type-A Ports
2 x USB 2.0, 4 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2
USB Type-C Ports
1 x USB 3.2 Gen 2
Video Outputs
1 x HDMI, 1 x DisplayPort
RJ-45 Ethernet Port Count
1
Analog Audio Connector Count
3
Digital Audio Ports (S/PDIF)
none
SMA Connectors (for Wi-Fi Antenna)
none
PS/2 Ports
combined

Board Connectors

Internal USB Type-A Connectors
2 x USB 2.0 (9 pin), 1 x USB 3.2 Gen 1 (19 pin)
Internal USB Type-C Connectors
1 x USB 3.2 Gen 1
CPU Cooler Power Connectors
1 x 4 pin (cooler), 1 x 4-pin (pump)
Case Fan Connectors (4 pin)
3
Dual-Purpose Fan/Pump Connectors (4-pin)
1
Case Fan Connectors (3 pin)
0
5V-D-G (3 pin) ARGB Lighting Connectors
2
12V-G-R-B (4 pin) RGB Lighting Connectors
0
M.2 Key E Connector for Wireless Modules
none
RS-232 (COM) Connector
none
LPT Port
none

Audio

Sound Scheme
7.1

Network

Network Adapter Speed
2.5 Gbit/s
Wi-Fi Standard
none
Bluetooth Version
none
Wireless Adapter
none

Power and Cooling

Main Power Connector
24 pin
CPU Power Connector
2 x 8 pin
Number of Power Phases
12+1+1
Passive Cooling
VRM area, chipset, 1 x M.2 slot
Active Cooling
none

Additional Information

Buttons on the Motherboard
Q-Flash Plus button, reset button
Backlit Board Elements
none
Software for RGB Lighting Synchronization
GIGABYTE RGB Fusion
Number of Layers in a PCB Stack-Up
6
Features, Additional
Intel XMP support, TPM 2.0 support, 2 connectors for expansion cards with Thunderbolt support
Package Contents
documentation

Description

Материнская плата GIGABYTE Z790 EAGLE полноразмерного формата предназначена для построения игровых ПК. Она выделяется крупными охлаждающими радиаторами и создана на элементной базе UltraDurable высокой надежности. Модель оснащена 4 слотами под установку модулей оперативной памяти стандарта DDR5, 3 слотами расширения PCI-E x16, 3 разъемами M.2 и 4 портами SATA. Сокет LGA 1700 предусматривает подключение процессора Intel 12/13/14 поколения. GIGABYTE Z790 EAGLE оборудована проводным контроллером LAN со скоростью 2.5 Гбит/с. На плате расположены кнопки перезагрузки и Q-Flash Plus.
