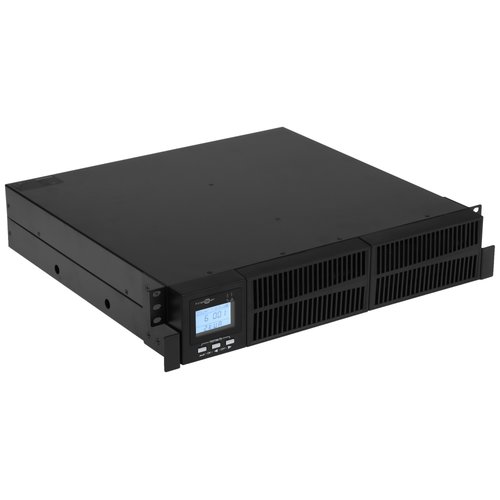

UPS FinePower Rack-2000

#9245325

UPS FinePower Rack-2000

[double conversion, 2000 VA, 1800 W, 8 x IEC 320 C13 (computer), EPO, RS-232] details

Not on sale

Total Output Power (VA)
  • Characteristics
  • Feedback 15
  • Instructions and files

Characteristics UPS FinePower Rack-2000

General parameters

Type
UPS
Model
FinePower Rack-2000
Main Color
black
Type
double conversion
Form Factor
Rack
Power Cable Length
1.2 m

Technical parameters

Maximum Output Power
2000 VA
Effective Power Output
1800 W
Minimum Input Voltage
176 V
Max Input Voltage
280 V
Min Input Frequency
50 Hz
Max Input Frequency
60 Hz
Minimum Output Frequency
50 Hz
Max Output Frequency
60 Hz
Wave Form
pure sine wave
Delay When Switching to Battery
0 ms
Efficiency
91 %
Safety Features
short-circuit protection, overheat protection, overload protection

Connectors

Number and Type of Power Output Connectors
8 x IEC 320 C13 (computer)
Number of Power Output Connectors (UPS)
8
Connectors/Ports
RS-232, EPO
Port Layout
horizontal, rack-mounted, vertical

Battery

Battery Type
lead-acid
Charging Time
8 h
Battery Voltage and Capacity
12V/9Ah
Replaceable Batteries
none
Battery Hot Swap
none
Number of Batteries
4 pcs
External Battery Connection
yes
Battery Included
yes

Additional Information

Housing Protection Class
IP20
Cold Start
yes
Display
LCD display
LED Indicators
silent mode, inverter operation, load value, malfunction, fan operation, battery capacity, input/output voltage
Sound Signals
UPS fault (error), overload, bypass mode, battery-powered
Noise Level
50 dB
Operating Temperature
from 0 to +40°C
Package Contents
power cable, documentation

Dimensions and Weight

Depth
430 mm
Width
89 mm
Height
440 mm
Weight
18.7 kg

Description

The FinePower Rack-2000 double-conversion UPS is a rack-mount model with an effective output power of 1800 W. The unit is equipped with 8 IEC 320 C13 outlets. The UPS ensures uninterrupted operation of servers, workstations, network equipment, and other hardware. An LCD display on the front panel allows monitoring key parameters.
The FinePower Rack-2000 UPS is designed for connection to a mains voltage ranging from 176 to 280 V. The model features 3 types of protection: against short circuit, overheating, and overload. The cold start function allows the UPS to be powered on in battery mode in the absence of mains voltage. The IP20-rated device is not designed for water exposure or operation in areas with high dust levels.
