UPS FinePower Rack-1000

#9245323

UPS FinePower Rack-1000

[double conversion, 1000 VA, 900 W, 4 x IEC 320 C13 (computer), EPO, RS-232] details

Not on sale

Total Output Power (VA)
  • Characteristics
  • Feedback 15
  • Instructions and files

Characteristics UPS FinePower Rack-1000

General parameters

Type
UPS
Model
FinePower Rack-1000
Main Color
black
Type
double conversion
Form Factor
Rack
Power Cable Length
1.2 m

Technical parameters

Maximum Output Power
1000 VA
Effective Power Output
900 W
Minimum Input Voltage
176 V
Max Input Voltage
280 V
Min Input Frequency
50 Hz
Max Input Frequency
60 Hz
Minimum Output Frequency
50 Hz
Max Output Frequency
60 Hz
Wave Form
pure sine wave
Delay When Switching to Battery
0 ms
Efficiency
90 %
Safety Features
short-circuit protection, overheat protection, overload protection

Connectors

Number and Type of Power Output Connectors
4 x IEC 320 C13 (computer)
Number of Power Output Connectors (UPS)
4
Connectors/Ports
RS-232, EPO
Port Layout
horizontal, rack-mounted, vertical

Battery

Battery Type
lead-acid
Charging Time
8 h
Battery Voltage and Capacity
12V/9Ah
Replaceable Batteries
none
Battery Hot Swap
none
Number of Batteries
2 pcs
External Battery Connection
yes
Battery Included
yes

Additional Information

Housing Protection Class
IP20
Cold Start
yes
Display
LCD display
LED Indicators
silent mode, inverter operation, load value, malfunction, fan operation, battery capacity, input/output voltage
Sound Signals
UPS fault (error), overload, bypass mode, battery-powered
Noise Level
50 dB
Operating Temperature
from 0 to +40°C
Package Contents
power cable, documentation

Dimensions and Weight

Depth
315 mm
Width
480 mm
Height
90 mm
Weight
11.6 kg

Description

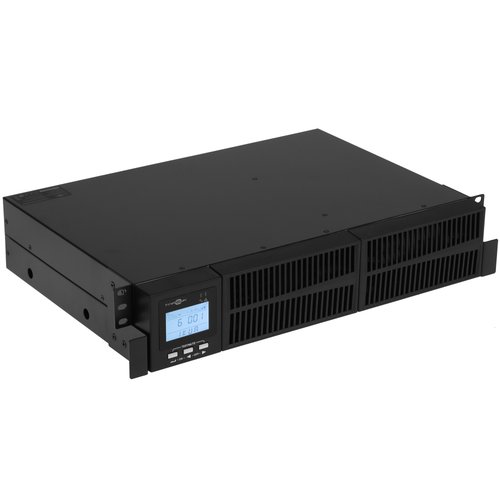

The FinePower Rack-1000 double-conversion UPS is equipped with an LCD display for showing key operating parameters. The Rack form factor model with an active output power of 900 W is designed for connecting servers, network hardware, and other equipment. The device features 4 IEC 320 C13 outlets. External battery connection is supported.
The FinePower Rack-1000 UPS is designed for mains power with input voltages ranging from 176 to 280 V. It supports 3 types of protection: short circuit, overheating, and overload. The cold start function allows starting the UPS in battery power mode when there is no mains voltage. The IP20 class device is not protected against dust ingress or water exposure.
