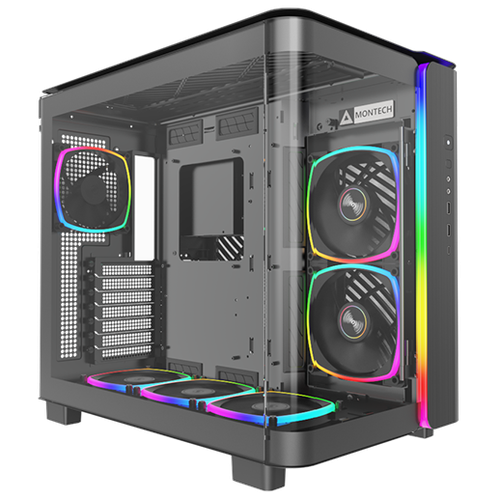

Characteristics PC case MONTECH KING 95 PRO [King 95 Pro Black] black
General parameters
Type
PC case
Model
MONTECH KING 95 PRO
Manufacturer Code
[King 95 Pro Black]
Form Factor and Dimensions
Housing Size Standard
Mid-Tower
Motherboard Orientation
vertical
Depth
475 mm
Width
300 mm
Height
442 mm
Appearance
Main Color
black
Housing Material
steel, glass, plastic
Metal Sheet Thickness
0.8 mm
Side Panel Window
left
Window Material
tempered glass
Front Panel Material
metal mesh, tempered glass
LCD Screen
none
Backlight Type
ARGB
Light Source
fan, housing elements
Backlight Connector
3 pin 5V-D-G (ARGB)
Backlight Control Method
button on the case
Compatibility
Compatible Board Form Factor
Standard-ATX, Micro-ATX, Mini-ITX
Compatible Motherboard Form Factor with Back-Connect I/O
none
Power Supply Form Factor
ATX
Power Supply Placement
behind the motherboard
Hidden Power Supply
yes
Max Power Supply Length
190 mm
Horizontal Expansion Slots
7
Vertical Expansion Slots
0
Max GPU Length
420 mm
Max CPU Cooler Height
175 mm
Number of 2.5" Drive Bays
3 pcs
Number of 3.5" Drive Bays
0 pcs
Number of 2.5"/3.5" Drive Bays
5 pcs
Number of External 3.5" Bays
0 pcs
Number of External 5.25" Bays
0 pcs
Cooling
Fans Included
4 x 120 mm, 2 x 140 mm
Front Fan Support
none
Rear Fan Support
1 x 120 mm
Top Fan Support
2 x 140 or 3 x 120 mm
Bottom Fan Support
2 x 140 or 3 x 120 mm
Side Fan Support
2 x 140 or 2 x 120 mm
Liquid Cooling Support
yes
Liquid Cooling Radiator Top Mounting Size
280 mm, 140 mm, 120 mm, 240 mm, 360 mm
Rear Mounting Size for AIO Radiator
120 mm
Side Radiator Mounting Dimensions for Liquid Cooling
280 mm, 140 mm, 120 mm, 240 mm
Front Panel Connectors and Interfaces
I/O Panel Location
front
USB Type-A Ports
2 x USB 3.2 Gen 1
USB Type-C Ports
1 x USB 3.2 Gen 2
Audio Connectors
3.5 mm jack (microphone), 3.5 mm jack (audio)
Built-In Card Reader
none
Maintenance
Side Panels Locks
rear screws
CPU Cooler Mounting Cutout
yes
Back Panel Cable Management
yes
Dust Filter
bottom
Additional Information
Built-In Power Supply
0 W
Quiet and Vibration-Dampening Cases
none
Package Contents
spare front panel, documentation, fastener kit
Features
adjustable fan bracket, supports two power supplies
Description
The Montech KING 95 PRO case is suitable for building a powerful gaming computer or a high-performance all-purpose PC. The main design features of the model are the variable power supply unit placement and an adjustable fan bracket. The front and side panels are made of 4 mm industrial-grade tempered glass, with a curved seam between them. The device is enhanced by multi-color lighting on the front panel and case fans.
The Montech KING 95 PRO case conforms to the Mid-Tower form factor and measures 442x300x475 mm. The 0.8 mm steel guarantees high structural rigidity. The model is compatible with motherboards of 3 form factors: Micro-ATX, Mini-ITX, and Standard-ATX. Installation of up to 2 power supplies is supported.
The case is compatible with liquid cooling systems. The maximum mounting size for a liquid cooling radiator is 360 mm. Audio jacks and USB ports are located on the front. The case is designed to accommodate 8 2.5-inch form factor drives. The number of LFF hard drive bays is 5. Case color is black. A set of fasteners is included.
