#5434457

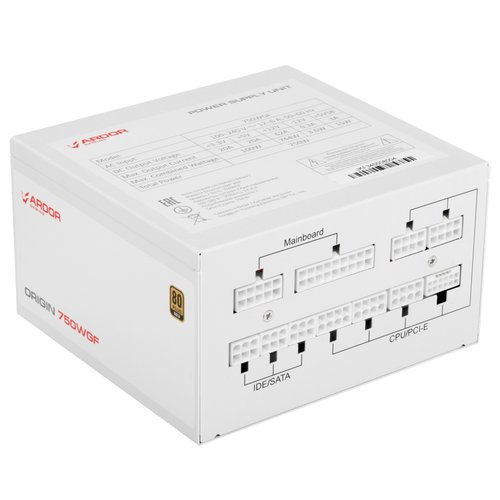

Power supply ARDOR GAMING ORIGIN 750WGF White white
[750 W, 80+ Gold, APFC, 20+4 pin, 4+4 pin CPU, 8 SATA, 16 pin (12VHPWR), 4 x 6+2 pin PCI-E] details
1 690 000 UZS
Accessories
Characteristics Power supply ARDOR GAMING ORIGIN 750WGF White white
General parameters
Type
power supply
Model
ARDOR GAMING ORIGIN 750WGF White
Nominal Power
750 W
Appearance
Form Factor
ATX
Color
white
Detachable Cables
fully modular
Cable Braiding
none
Wire Colors
white
Backlight Type
none
Cables and Connectors
Main Power Connector
20+4 pin
CPU Power Connectors
4+4 pin
Graphics Card Power Connectors (PCI-E)
16 pin (12VHPWR), 4 x 6+2 pin
15-pin SATA Connector Count
8
4-pin Molex Connector Count
3
4 pin Floppy Connector
none
Main Power Cable Length
500 mm
CPU Power Cable Length
550 mm
PCI-E Power Cable Length
600 mm
SATA Power Cable Length
450 mm
Molex Power Cable Length
450 mm
Electrical Parameters
12V Line Power
744 W
Current on the +12 V Line
12V1 62A
Current on the +3.3 V Line
20 A
Current on the +5 V Line
20 A
Standby Power Supply Current (+5V Standby)
3 A
Current on the -12 V Line
0.3 A
AC Input Voltage Range
100-240 V 50/60 Hz
Cooling System
Cooling System
active
Fan Sizes
120 x 120 mm
Speed Control
automatic
Fan Mode Switch (Hybrid Mode)
none
Certification
80 PLUS Efficiency Rating
Gold
Power Factor Corrector (PFC)
active
Standarts Compliance
ATX 12V 3.0
Protection
OPP, OCP, OTP, SCP, UVP, OVP
Additional Information
Power Cable Included
yes
Package Contents
cable ties, documentation, fastener kit
Dimensions and Weight
Length
140 mm
Width
150 mm
Height
86 mm
Weight
2.6 kg
Description
The ARDOR GAMING ORIGIN 750WGF White power supply in a standard white enclosure is installed in large and medium-sized PC cases. It provides a power output of 750 W, allowing it to be used for powering gaming and work PCs under heavy load. The modular design allows disconnecting unnecessary cables to free up space inside the chassis. Cables for connecting CPU, graphics card, and storage drive power are included with the unit.
The active cooling system ensures stable operation of the ARDOR GAMING ORIGIN 750WGF White power supply under load. It is represented by a 120 mm fan with automatic speed control. The unit's efficiency is confirmed by the 80 PLUS Gold certification. It features an efficiency rating of up to 93%, low power loss, and protection against short circuits, overheating, overvoltage, and power surges. A mounting kit is included for proper installation of the unit.
The active cooling system ensures stable operation of the ARDOR GAMING ORIGIN 750WGF White power supply under load. It is represented by a 120 mm fan with automatic speed control. The unit's efficiency is confirmed by the 80 PLUS Gold certification. It features an efficiency rating of up to 93%, low power loss, and protection against short circuits, overheating, overvoltage, and power surges. A mounting kit is included for proper installation of the unit.
