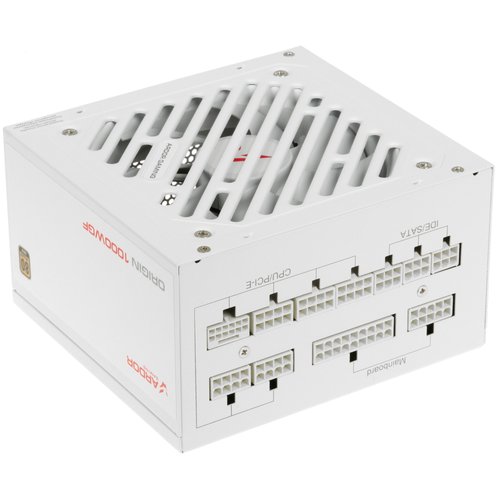

Characteristics Power supply ARDOR GAMING ORIGIN 1000WGF white
General parameters
Type
power supply
Model
ARDOR GAMING ORIGIN 1000WGF
Nominal Power
1000 W
Appearance
Form Factor
ATX
Color
white
Detachable Cables
fully modular
Cable Braiding
none
Wire Colors
white
Backlight Type
none
Cables and Connectors
Main Power Connector
20+4 pin
CPU Power Connectors
2 x 4+4 pin
Graphics Card Power Connectors (PCI-E)
6 x 6+2 pin, 16 pin (12VHPWR)
15-pin SATA Connector Count
6
4-pin Molex Connector Count
4
4 pin Floppy Connector
none
Main Power Cable Length
600 mm
CPU Power Cable Length
650 mm
PCI-E Power Cable Length
600 mm
SATA Power Cable Length
450 mm
Molex Power Cable Length
450 mm
Electrical Parameters
12V Line Power
996 W
Current on the +12 V Line
12V1 83A
Current on the +3.3 V Line
20 A
Current on the +5 V Line
20 A
Standby Power Supply Current (+5V Standby)
3 A
Current on the -12 V Line
0.3 A
AC Input Voltage Range
100-240 V 50/60 Hz
Cooling System
Cooling System
active
Fan Sizes
120 x 120 mm
Speed Control
automatic
Fan Mode Switch (Hybrid Mode)
none
Certification
80 PLUS Efficiency Rating
Gold
Power Factor Corrector (PFC)
active
Standarts Compliance
ATX 12V 3.0
Protection
OPP, OCP, OTP, SCP, UVP, OVP
Additional Information
Power Cable Included
yes
Package Contents
cable kit
Dimensions and Weight
Length
140 mm
Width
150 mm
Height
86 mm
Description
The ARDOR GAMING ORIGIN 1000WGF white power supply unit is suitable for building and upgrading high-performance multipurpose and gaming PCs. The model's rated power of 1,000 W ensures stable operation for a high-performance processor, one or more gaming graphics cards, multiple controllers, adapters, fans, and other PC components. The power supply features a fully modular cabling system, allowing you to connect only the required cables. This improves ventilation efficiency and optimizes the internal layout of the computer.
The energy efficiency of the ARDOR GAMING ORIGIN 1000WGF power supply meets the requirements of the 80 PLUS Gold certification. An active power factor corrector (Active PFC) increases the device's efficiency. The model supports essential protection technologies: OCP, OPP, OTP, OVP, SCP, and UVP.
The power supply conforms to the widely used ATX form factor. With dimensions of 140x150x86 mm, the device is suitable for installation in almost any full-size chassis. Cooling of the PSU is handled by a 120 mm fan.
