Graphics card KFA2 GeForce RTX 5060 ROCK(X) OC 2FAN RGB Black [56NSN8MDDAEK]

#5629289

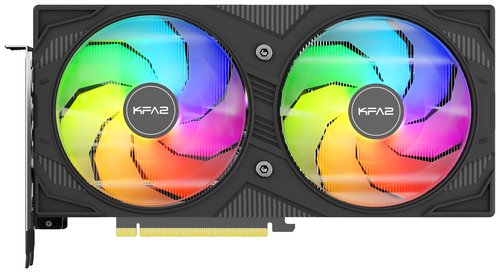

Graphics card KFA2 GeForce RTX 5060 ROCK(X) OC 2FAN RGB Black [56NSN8MDDAEK]

[PCIe 5.0, GPU 2280 MHz, 8 GB GDDR7, 128 bit, 3 x DisplayPort, HDMI] details

4.91 | 89

Not on sale

Accessories

  • Characteristics
  • Feedback 89

Characteristics Graphics card KFA2 GeForce RTX 5060 ROCK(X) OC 2FAN RGB Black [56NSN8MDDAEK]

General parameters

Type
graphics card
Model
KFA2 GeForce RTX 5060 ROCK(X) OC 2FAN RGB Black
Manufacturer Code
[56NSN8MDDAEK]
Color
black
Designed for Mining (Cryptocurrency Mining)
none
LHR
none

Basic parameters

Graphics Processor
GeForce RTX 5060
Microarchitecture
NVIDIA Blackwell
Technical Process
5 nm

Video processor specifications

GPU Core Clock
2280 MHz
Turbo Frequency
2550 MHz
Number of Universal Processors (ALU)
3840
Texture Blocks
120
Number of Raster Operations Units
48
Ray Tracing Support
yes
Ray Tracing Hardware Acceleration (RT Cores)
30
Tensor Cores
120

Video memory specifications

Video Memory Size
8 GB
Memory Type
GDDR7
Memory Bus Bit Depth
128 bit
Max Memory Bandwidth
448 GB/s
Effective Memory Frequency
28000 MHz

Image Output

Type and Number of Video Interfaces
HDMI, 3 x DisplayPort
HDMI Version
2.1b
DisplayPort Version
2.1a
Multi-Monitor Setup
4
Max Resolution
7680x4320 (8K Ultra HD)

Connection

Connection Type
PCIe 5.0
Connector Form Factor
PCIe x16
Number of PCI Express Lanes
8
Extra Power Connectors
8 pin
Recommended Power Supply
550 W
Power Consumption
145 W

Cooling System

Cooling Type
active air
Type and Number of Installed Fans
2 axial
Liquid Cooling Radiator
none

Additional Information

GPU RGB Lighting
yes
RGB Lighting Sync
KFA2 Xtreme Tuner
LCD Screen
none
Dual BIOS Switch
none
Features, Additional
metal backplate
Package Contents
documentation

Dimensions and Weight

Low Profile Card
none
Number of Occupied Expansion Slots
2
GPU Length
255 mm
Graphics Card Width
127 mm
GPU Depth
39.6 mm

Description

Видеокарта KFA2 GeForce RTX 5060 ROCK(X) OC выделяется качественной элементной базой повышенной надежности и мощными техническими характеристиками. KFA2 GeForce RTX 5060 ROCK(X) OC оборудована кулером воздушного охлаждения с двумя вентиляторами. Они создают интенсивный поток воздуха и быстро рассеивают тепло от внутренних компонентов. Вывод изображения на мониторы выполняется посредством HDMI и DisplayPort разъемов.
