PC case ARDOR GAMING Aeris R7 white

#9295131

PC case ARDOR GAMING Aeris R7 white

[Mid-Tower, E-ATX, Micro-ATX, Mini-ITX, Standard-ATX, USB 3.2 Gen 1 Type-A, USB 3.2 Gen 1 Type-C, ARGB fans, 3 x 120 mm, 4 x 140 mm] details

4.45 | 22

Not on sale

Color

Accessories

  • Characteristics
  • Feedback 22
  • Instructions and files

Characteristics PC case ARDOR GAMING Aeris R7 white

General parameters

Type
PC case
Model
ARDOR GAMING Aeris R7

Form Factor and Dimensions

Housing Size Standard
Mid-Tower
Motherboard Orientation
vertical
Depth
430 mm
Width
238 mm
Height
496 mm
Weight
9.31 kg

Appearance

Main Color
white
Housing Material
steel, glass, plastic
Metal Sheet Thickness
0.7 mm
Side Panel Window
left
Window Material
tempered glass
Front Panel Material
metal mesh
LCD Screen
none
Backlight Type
ARGB
Light Source
fan
Backlight Connector
3 pin 5V-D-G (ARGB)
Backlight Control Method
button on the case, MSI MYSTIC LIGHT, GIGABYTE RGB FUSION, ASUS AURA

Compatibility

Compatible Board Form Factor
E-ATX, Standard-ATX, Micro-ATX, Mini-ITX
Compatible Motherboard Form Factor with Back-Connect I/O
Standard-ATX, Micro-ATX
Power Supply Form Factor
ATX
Power Supply Placement
lower
Hidden Power Supply
yes
Max Power Supply Length
240 mm
Horizontal Expansion Slots
7
Vertical Expansion Slots
0
Max GPU Length
410 mm
Max CPU Cooler Height
180 mm
Number of 2.5" Drive Bays
2 pcs
Number of 3.5" Drive Bays
1 pcs
Number of 2.5"/3.5" Drive Bays
3 pcs
Number of External 3.5" Bays
0 pcs
Number of External 5.25" Bays
0 pcs

Cooling

Fans Included
3 x 120 mm, 4 x 140 mm
Front Fan Support
3 x 140 or 3 x 120 mm
Rear Fan Support
1 x 140 or 1 x 120 mm
Top Fan Support
2 x 140 or 3 x 120 mm
Bottom Fan Support
2 x 120 mm
Side Fan Support
none
Liquid Cooling Support
yes
Front Mounting Size for AIO Radiator
280 mm, 120 mm, 240 mm, 360 mm
Liquid Cooling Radiator Top Mounting Size
280 mm, 120 mm, 240 mm, 360 mm
Rear Mounting Size for AIO Radiator
140 mm, 120 mm

Front Panel Connectors and Interfaces

I/O Panel Location
top
USB Type-A Ports
2 x USB 3.2 Gen 1
USB Type-C Ports
1 x USB 3.2 Gen 1
Audio Connectors
3.5mm jack (audio/mic)
Built-In Card Reader
none

Maintenance

Side Panels Locks
vertical insert
CPU Cooler Mounting Cutout
yes
Back Panel Cable Management
yes
Dust Filter
top, bottom, front, side (right)

Additional Information

Built-In Power Supply
0 W
Quiet and Vibration-Dampening Cases
none
Package Contents
documentation, fastener kit

Description

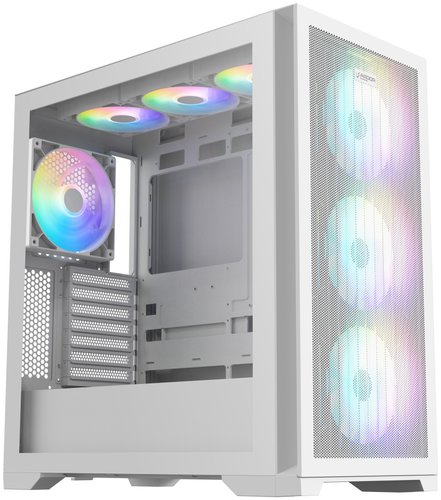

The white Mid-Tower ARDOR GAMING Aeris R7 PC case, measuring 430x238x496 mm, is designed for assembling a gaming or high-performance universal PC for home or office use. The device design combines a metal mesh front panel and a scratch-resistant side window. The pre-installed fans serve as sources of addressable RGB lighting, with the benefit of simultaneously displaying multiple colors. Connecting external storage drives, diverse peripheral devices, smartphones, mobile phones, webcams, and other equipment is simplified by 3 USB ports: one Type-C and two Type-A.
The ARDOR GAMING Aeris R7 case is compatible with motherboards of four form factors: E-ATX, Micro-ATX, Mini-ITX, and Standard-ATX. The device is supplied without a power supply unit; it requires an ATX PSU up to 240 mm in length. The maximum compatible graphics card length is 410 mm, and the maximum CPU cooler height is 180 mm. Liquid cooling systems with radiator mounting sizes up to 360 mm are supported. Protection against dust is provided by 4 dust filters located on the right, top, bottom, and front.
