Switch Mercusys MS110P

#5416668

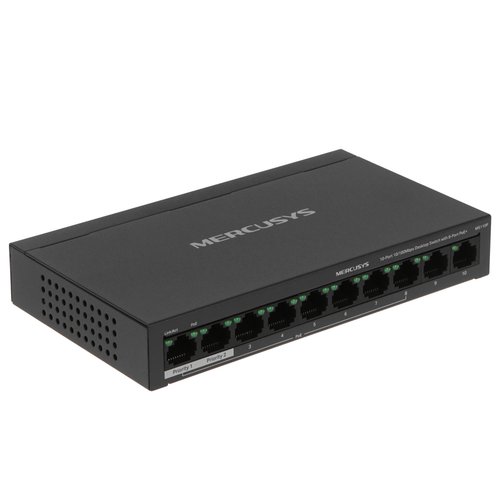

Switch Mercusys MS110P

[ports-10, uncontrolled, 100 Mb/s, PoE, PoE budget 65 W] details

4.8 | 45
Excellent reliability
279 000 UZS
Buy
Avail in 1 shop
Warranty: 12 mos.

Accessories

  • Characteristics
  • Feedback 45
  • Service rating (Reliability assessment)
  • Instructions and files

Characteristics Switch Mercusys MS110P

Classification

Type
switch
Model
Mercusys MS110P
Type
uncontrolled
Switching Method
store and forward
Switch Layer Levels
L2
Placement
wall-mounted, tabletop

Hardware

Cooling
passive

PoE

Support For PoE
yes
PoE Port Count
8
PoE Standards
PoE+ (802.3at), PoE (802.3af)
PoE Budget
65 W

Ports

Ethernet Port
10BASE-T, 100BASE-TX
Base Data Transfer Rate
100 Mb/s
Total Number of Network Switch Ports
10 x RJ-45
Number of Copper Ports (RJ-45)
10
RJ-45 Copper Connector Speed
10 x 100 Mb/s
100 Mb/s Port Count
10
Number of SFP Ports
0
Combo Ports (RJ-45/SFP)
none
Console Port
none

Performance

MAC Address Table Size
2048
Internal Throughput
2 Gbit/s

Functionality and Software

Standards Support
IEEE 802.3i, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
Functions
mode selection, flow control
QoS Prioritization
yes
Lightning Protection
none
Safety
port isolation

Operating Conditions

Operating Temperature
from 0°C to +40°C
Operating Humidity
from 10% to 90%, without condensate

Additional Information

Noise Level
0 dB
Power Type and Voltage
DC 53.5V/1.31А
Power Consumption
77.52 W
Indicators
activity, PoE, power
Package Contents
power adapter, power cable, documentation
Extra
distance for data transmission and power supply — up to 250 m

Dimensions and Weight

Width
171 mm
Depth
98 mm
Height
27 mm

Dimensions and Weight in Packaging

Package Width
125 mm
Package Height
85 mm
Packaging Depth
186 mm
Packaged Weight
0.75 kg

Description

The Mercusys MS110P switch is a reliable network device that connects multiple smart devices into a single local network for data exchange. It comes in a durable metal housing and features 10 RJ45 ports. Eight of them support PoE technology, enabling data transmission and power delivery over a single cable. The switch can be placed on a desk or mounted on a wall. \nMercusys MS110P is an unmanaged L2 switch with a basic transmission speed of 100 Mbps. The device housing features two Uplink ports: one for connecting to an NVR and the other for connecting to the Internet. The Port Isolation mode allows you to separate client traffic with a single click, enhancing overall performance and security.
