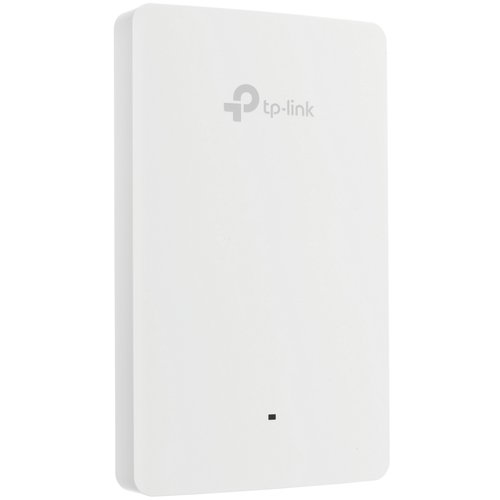

Access point TP-Link EAP235-Wall

#4746401

Access point TP-Link EAP235-Wall

[ports: 4 pcs, 100 Mbit/s, 1000 Mbit/s, Wi-Fi 802.11 5 GHz, 2.4 GHz, 1167 Mbit/s] details

630 000 UZS
Buy
Avail in 2 shops
  • Characteristics
  • Feedback 21
  • Instructions and files

Characteristics Access point TP-Link EAP235-Wall

General parameters

Type
access point
Model
TP-Link EAP235-Wall
Main Color
white

Design

Placement
indoor
Installation
wall-mounted
Compact Design
yes

Wi-Fi Parameters

Wi-Fi Standard
5 (802.11ac), 4 (802.11n)
Wi-Fi Class
AC1200
Transmitter Operating Frequency
5 GHz, 2.4 GHz
Max Wireless Speed
1167 Mbit/s
Max Speed at 2.4 GHz
300 Mbit/s
Max Speed at 5 GHz
867 Mbit/s
Dual Band Operation
yes
Transmitter Power Output
20 dBm
Operating Modes
bridge, access point
Wireless Connection Security
WPA-PSK, WEP, WPA-Enterprise, WPA2-Enterprise, WPA2-PSK

Antenna

Type of Antenna
internal
Removable Antenna
none
Antenna Count
4
Antenna Gain
4 dBi

Ports

Connectors/Ports
Ethernet, Wi-Fi
LAN Port Count
4 pcs
Ethernet Data Transfer Rate
100 Mbit/s, 1000 Mbit/s
USB Ports
none

Functionality

Controls
SSH, mobile app, web interface, SNMP, TP-Link Omada
Support For Mesh
yes
DHCP
yes
Multi-Stream Data Transfer
MU-MIMO
Support For WiMAX
none
Advanced Features
speed limit, customer statistics, QoS, wi-fi statistics, auto channel selection, Beamforming, Band Steering, load balancing
Additional Connection Protection
MAC filtering, unauthorized access point detection, client isolation

Power

Support For PoE
IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Passive PoE
yes
Input Voltage
PoE 42.2-57V / 0.6А
Built-In Socket
none

Operating Conditions

Operating Temperature Range
0℃ ~ +40℃
Humidity Level
10% - 90% without condensation

Additional Information

Mobile App
Omada
Buttons
factory reset
Features
up to 200 clients
Package Contents
documentation, installation kit
Coverage
25 m²
Connected Devices Limit
200

Dimensions and Weight

Width
143 mm
Length
86 mm
Height
20 mm

Dimensions and Weight in Packaging

Package Width
120 mm
Package Height
35 mm
Packaging Depth
180 mm
Packaged Weight
363 g

Description

The TP-Link EAP235-Wall access point is a compact solution for commercial use, such as in offices, hotels, or retail spaces. Its features make it an excellent choice for providing clients with wireless Internet access. A key feature of the device is simultaneous dual-band operation at 2.4 and 5 GHz, which, combined with 802.11ac/n support, can deliver high performance up to 867 Mbps. In addition, the model provides a reliable and stable signal over long distances for a wide variety of client devices, thanks to high transmitter power and high-gain antennas.
The body of the TP-Link EAP235-Wall is made using high-quality materials and features a sleek design, allowing it to easily blend into virtually any interior. Due to its design, this model is intended for in-wall mounting and connects via an RJ-45 port. Several network ports are also provided for connecting client equipment. Various protocols, a web interface, and the Omada mobile app can be used for system management and setup. Power can be supplied via PoE technology.
