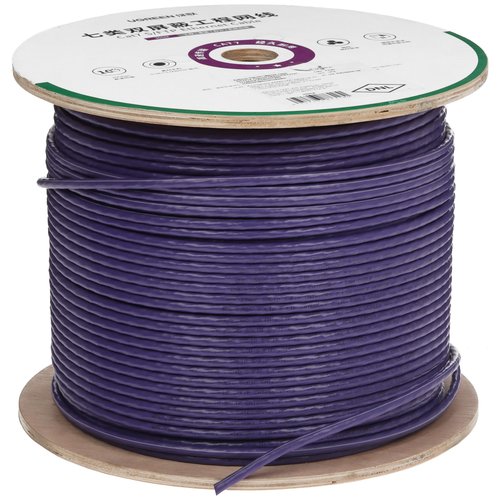

Twisted pair Ugreen NW125

#5453821

Twisted pair Ugreen NW125

[SFTP, pairs 4, cat. 7, single-core, core ⌀ - 0.58 mm, conductor - copper, 305 m, indoor use] details

3 790 000 UZS
Buy
Avail in 1 shop
Warranty: 12 mos.
  • Characteristics
  • Feedback 10

Characteristics Twisted pair Ugreen NW125

General parameters

Type
twisted pair
Model
Ugreen NW125
Manufacturer Code
[70318]
External Insulation Color
purple
AWG Standard
23

Twisted Pair Specifications

Twisted Pair Type
SFTP
Category
7
Number of Pairs
4
Number of Cores
8
Cable Shielding
foil, braid
Conductor Structure
single-core
Conductor Material
copper
Conductor Cross-Section Thickness
0.58 mm
Max Data Transfer Speed
10000 Mbit

Design

Length
305 m
For Outdoor Installation
none
Packaging Type
on spool
Cable
none
Cable External Diameter
7.8 mm

Dimensions and Weight in Packaging

Package Width
380 mm
Package Height
300 mm
Packaging Depth
380 mm
Packaged Weight
20.9 kg

Description

The Ugreen NW125 SFTP twisted pair cable with braided and foil shielding complies with Category 7 and supports data transfer speeds of up to 10 Gbps. The cable is designed for indoor use. Protection against mechanical damage is provided by purple outer insulation.
The length of the Ugreen NW125 twisted pair cable is 305 m. The cable is supplied on a spool.
