Cooling system DEEPCOOL LE520 black

#5412870

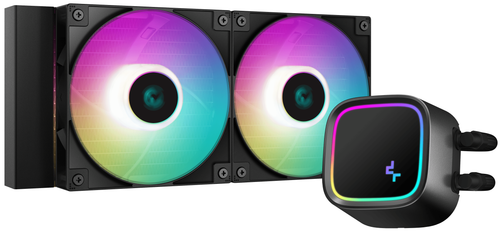

Cooling system DEEPCOOL LE520 black

[120 mm - two sections, pump slot - 3 pin, heat sink - aluminium, TDP - 220 W, ARGB lighting] details

Not on sale

Color
  • Characteristics
  • Feedback 486
  • Instructions and files

Characteristics Cooling system DEEPCOOL LE520 black

Classification

Type
cooling system
Model
DEEPCOOL LE520
Manufacturer Code
[R-LE520-BKAMMN-G-1]
Serviceable Liquid Cooling System
none

Appearance

Main Color
black
Backlight Type
ARGB
Light Source
fan, water block
Backlight Connector
3 pin 5V-D-G (ARGB)
LCD Screen
none

Water Block

Intended Use
for processor
Socket
AM5, LGA 1150, LGA 1700, LGA 1151, AM4, LGA 1200, LGA 1151-v2, LGA 1155
Water Block Material
copper
Water Block Dimensions
91 × 80 × 52 mm

Radiator

Radiator Mounting Size
120 mm - two sections
Thermal Dissipation Power, TDP
220 W
Radiator Length
282 mm
Heatsink Width
120 mm
Radiator Thickness
27 mm
Heatsink Material
aluminium

Fans

Number of Fans Included
2
Fan Sizes
120 x 120 mm
Fan Bearing Type
slip (hydrodynamic)
Minimum Rotational Speed
500 RPM
Max RPM
2250 RPM
Fan Rotation Speed Adjustment
automatic (PWM)
Max Noise Level
32.9 dB
Max Air Flow
85.85 CFM
Max Static Pressure
32.1 Pa
Fan Connector
4 pin

Pump

Pump Noise Level
17.8 dB
Pump Rotation Speed
2400 RPM
Pump Connector
3 pin

Tubes

Length of the Tubes
410 mm
Transparent Tubes
none

Additional Information

Thermal Paste Included
applied to the base

Description

The DEEPCOOL LE520 cooling system is capable of dissipating thermal power up to 220 W from Intel and AMD processors. The cooler consists of a copper water block, a dual-section aluminum radiator, and two 120 mm fans. The combined operation of these components ensures stable heat dissipation across various computing workloads on the processor. The fans feature an adjustable rotational speed within 500-2250 rpm, a fluid dynamic bearing, and a low noise level of 32.9 dB. Integrated ARGB LEDs provide impressive lighting with a customizable color palette. The 410 mm tubes ensure convenience when installing the DEEPCOOL LE520 liquid cooling system.
