PC ARDOR GAMING RAGE H485

#5930888

PC ARDOR GAMING RAGE H485

[AMD Ryzen 5 7500F, 6 x 3.7 GHz, 32 GB DDR5, GeForce RTX 5060 Ti, SSD 1000 GB, no OS, 1 x HDMI, 3 x DisplayPort, Wi-Fi, Bluetooth, AMD B850, power supply - 650 W] details

4.56 | 9

Not on sale

Accessories

  • Characteristics
  • Feedback 9
  • Instructions and files

Characteristics PC ARDOR GAMING RAGE H485

General parameters

Type
PC
Model
ARDOR GAMING RAGE H485
Series
ARDOR GAMING RAGE
Part of Russian Industrial Registry
none
Housing form Factor
Mid-Tower
Body Color
black

Software

Operating System
no OS

Processor

CPU Model
AMD Ryzen 5 7500F
Total Number of Cores
6
Number of Performance Cores
6
Number of Efficiency Cores
0
Number of Threads
12
Base Clock for Performance Cores
3.7 GHz
Max Performance Core Frequency
5 GHz
Efficient Cores Base Clock
0 GHz
Efficiency Core Max Clock Speed
0 GHz

Motherboard

Socket
AM5
Chipset
AMD B850
Number of RAM Slots
4

RAM

RAM Type
DDR5
RAM Form Factor
DIMM
RAM Frequency
4800 MHz
Number of Installed Modules
2
Total RAM
32 GB

Video Card

GPU Type
discrete
Integrated GPU Model
none
Discrete GPU Model
GeForce RTX 5060 Ti
Video Memory Type
GDDR7
Video Memory Size
8 GB

Data storage devices

Solid State Drive (SSD) Configuration
1 TB M.2 PCIe
Hard Drive (HDD) Configuration
none

Front Panel Connectors

USB Type-A Ports
2 x USB 3.2 Gen 1
USB Type-C Ports
1 x USB 3.2 Gen 2
Audio Connectors
3.5mm jack (audio/mic)
Card Reader
none
Optical Drive
none

Connectors

Rear Panel USB Type-A Ports
4 x USB 2.0, 1 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2
Rear Panel USB Type-C Ports
2 x USB 3.2 Gen 2
Video Ports
1 x HDMI, 3 x DisplayPort
Video Connector Version
HDMI 2.1b, DisplayPort 2.1b
Analog Audio Connector Count
2
Other Peripheral Ports
SMA (for Wi-Fi antenna), S/PDIF (TOSLINK)

Internet/Data Transfer

Network Adapter Speed
5 Gbit/s
Wi-Fi Standard
7 (802.11be)
Bluetooth Version
5.4

Additional Information

Side Panel Window
yes
Power Supply Wattage
650 W
Keyboard and Mouse Included
none
Features
power supply 80 PLUS Bronze

Dimensions

Length
465 mm
Width
230 mm
Height
471 mm

Configuration

Processor
AMD Ryzen 5 7500F
Motherboard
MSI B850 GAMING PLUS WIFI
RAM
16GB TEAMGROUP T-Force Delta RGB Black 6000MHz
RAM Stick Count
2 pcs
Graphics Card
Palit GeForce RTX 5060 Ti Dual 8GB
SSD Storage
1TB M.2 NVMe Kingston NV3
CPU Cooling
ARDOR GAMING SOAR Black (based on DEEPCOOL AG400 BK ARGB)
Power Supply
DEEPCOOL PL650D 650W (80+ Bronze)
Case
DEEPCOOL CK560 (Design for ARDOR GAMING)

Description

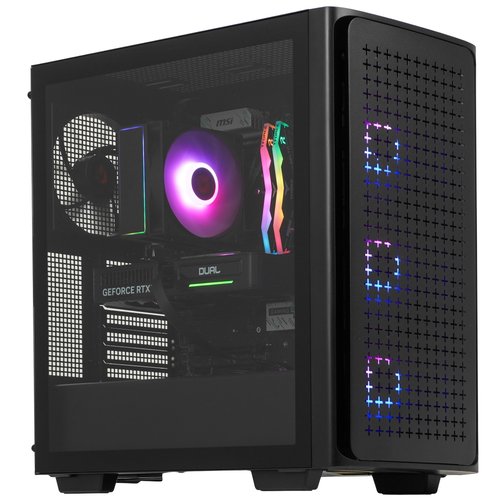

The ARDOR GAMING RAGE H485 PC is housed in a black Mid-Tower chassis measuring 465x230x471 mm. The side panel features a transparent window that displays the internal components with the lighting turned on. The system configuration includes a 6-core AMD Ryzen 5 7500F processor with a base clock frequency of 3.7 GHz, capable of processing up to 12 computing threads with an automatic boost clock up to 5 GHz under high workloads. The motherboard provides 4 RAM slots, 2 of which are occupied by modules totaling 32 GB. This amount of RAM ensures stable multitasking performance.
The ARDOR GAMING RAGE H485 PC features a discrete NVIDIA GeForce RTX 5060 Ti graphics card with 8 GB of video memory, handling rendering and display of realistic gaming graphics. A 1 TB solid-state drive is provided for data storage and application installations. With 1 HDMI port and 3 DisplayPort outputs, up to 4 monitors can be connected simultaneously.
