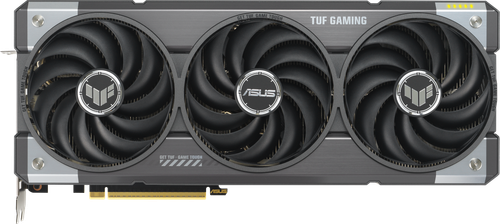

Graphics card ASUS GeForce RTX 5070 TUF Gaming OC Edition [TUF-RTX5070-O12G-GAMING]

#5620385

Graphics card ASUS GeForce RTX 5070 TUF Gaming OC Edition [TUF-RTX5070-O12G-GAMING]

[PCIe 5.0, GPU 2330 MHz, 12 GB GDDR7, 192 bit, 2 x HDMI, 3 x DisplayPort] details

4.9 | 144
11 890 000 UZS
Product out of stock
Warranty: 12 mos.

Accessories

  • Characteristics
  • Feedback 144
  • Instructions and files

Characteristics Graphics card ASUS GeForce RTX 5070 TUF Gaming OC Edition [TUF-RTX5070-O12G-GAMING]

Factory specifications

Manufacture country
China

General parameters

Type
graphics card
Model
ASUS GeForce RTX 5070 TUF Gaming OC Edition
Manufacturer Code
[TUF-RTX5070-O12G-GAMING]
Color
gray
Designed for Mining (Cryptocurrency Mining)
none
LHR
none

Basic parameters

Graphics Processor
GeForce RTX 5070
Microarchitecture
NVIDIA Blackwell
Technical Process
5 nm

Video processor specifications

GPU Core Clock
2330 MHz
Turbo Frequency
2640 MHz
Number of Universal Processors (ALU)
6144
Texture Blocks
192
Number of Raster Operations Units
80
Ray Tracing Support
yes
Ray Tracing Hardware Acceleration (RT Cores)
48
Tensor Cores
192

Video memory specifications

Video Memory Size
12 GB
Memory Type
GDDR7
Memory Bus Bit Depth
192 bit
Max Memory Bandwidth
672 GB/s
Effective Memory Frequency
28000 MHz

Image Output

Type and Number of Video Interfaces
3 x DisplayPort, 2 x HDMI
HDMI Version
2.1b
DisplayPort Version
2.1b
Multi-Monitor Setup
4
Max Resolution
7680x4320 (8K Ultra HD)

Connection

Connection Type
PCIe 5.0
Connector Form Factor
PCIe x16
Number of PCI Express Lanes
16
Extra Power Connectors
16 pin (12V-2x6)
Recommended Power Supply
750 W

Cooling System

Cooling Type
active air
Type and Number of Installed Fans
3-axial
Liquid Cooling Radiator
none

Additional Information

GPU RGB Lighting
yes
RGB Lighting Sync
ASUS Aura Sync
LCD Screen
none
Dual BIOS Switch
yes
Features, Additional
AI performance - 1026 TOPs
Package Contents
souvenir products, 16-pin to 2x8-pin adapter, documentation, graphics card support bracket

Dimensions and Weight

Low Profile Card
none
Number of Occupied Expansion Slots
3.13
GPU Length
329 mm
Graphics Card Width
140 mm
GPU Depth
62.5 mm

Description

Игровая видеокарта ASUS GeForce RTX 5070 TUF Gaming OC Edition с поддержкой трассировки лучей делает графику более реалистичной благодаря естественной прорисовке света и теней. Устройство с 12 ГБ памяти GDDR7 поддерживает видео в 8K-формате и одновременную работу с четырьмя мониторами. Видеокарта оснащена тремя кулерами и переключателем BIOS.
