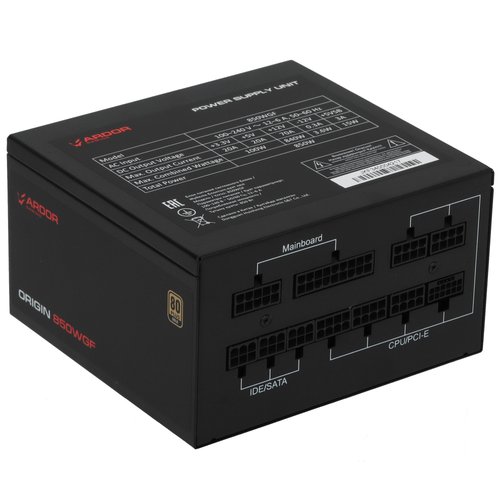

Power supply ARDOR GAMING ORIGIN 850WGF  black

#9031871

Power supply ARDOR GAMING ORIGIN 850WGF black

[850 W, 80+ Gold, APFC, 20+4 pin, 2 x 4+4 pin CPU, 8 SATA, 16 pin (12VHPWR), 6 x 6+2 pin PCI-E] details

1 490 000 UZS
Buy
Avail in 2 shops
Warranty: 99 mos.
  • Characteristics
  • Feedback 606
  • Service rating (Reliability assessment)
  • Instructions and files

Characteristics Power supply ARDOR GAMING ORIGIN 850WGF black

General parameters

Type
power supply
Model
ARDOR GAMING ORIGIN 850WGF
Nominal Power
850 W

Appearance

Form Factor
ATX
Color
black
Detachable Cables
fully modular
Cable Braiding
none
Wire Colors
black
Backlight Type
none

Cables and Connectors

Main Power Connector
20+4 pin
CPU Power Connectors
2 x 4+4 pin
Graphics Card Power Connectors (PCI-E)
6 x 6+2 pin, 16 pin (12VHPWR)
15-pin SATA Connector Count
8
4-pin Molex Connector Count
3
4 pin Floppy Connector
none
Main Power Cable Length
500 mm
CPU Power Cable Length
550 mm
PCI-E Power Cable Length
600 mm
SATA Power Cable Length
450 mm
Molex Power Cable Length
450 mm

Electrical Parameters

12V Line Power
840 W
Current on the +12 V Line
12V1 70A
Current on the +3.3 V Line
20 A
Current on the +5 V Line
20 A
Standby Power Supply Current (+5V Standby)
3 A
Current on the -12 V Line
0.3 A
AC Input Voltage Range
100-240 V 50/60 Hz

Cooling System

Cooling System
active
Fan Sizes
120 x 120 mm
Speed Control
automatic
Fan Mode Switch (Hybrid Mode)
none

Certification

80 PLUS Efficiency Rating
Gold
Power Factor Corrector (PFC)
active
Standarts Compliance
ATX 12V 3.0
Protection
OPP, OCP, OTP, SCP, UVP, OVP

Additional Information

Power Cable Included
yes
Package Contents
cable kit, cable ties, documentation, fastener kit

Dimensions and Weight

Length
140 mm
Width
150 mm
Height
86 mm
Weight
2.7 kg

Description

ARDOR GAMING ORIGIN 850WGF is used to power PC components with a total power of 850 W. For connection it uses detachable cables with connectors at the ends. The unit connects to the motherboard via 20 + 4 pin. With the 4+4 pin x2 CPU connector, connection to the processor is made. Using 16 pin (12VHPWR) and 6+2 pin x6 PCI-E, the unit can connect to graphics cards. It is also possible to connect up to 8 storage drives via SATA connectors.
ARDOR GAMING ORIGIN 850WGF complies with 80+ Gold certification, confirming the wattage claims at a certain load. The APFC system allows accumulating energy in the inductor for its further transfer to the load when needed. Thanks to this, the power supply is capable of fully meeting the energy needs of PC components. A feature of the model is the use of a 120x120 mm fan, which helps prevent system overheating. It uses automatic fan speed control.
