#9003204
Switch DEXP GP5
[ports-5, uncontrolled, 1000 Mb/s, 100 Mb/s, PoE, PoE budget 58 W] details
Not on sale
Accessories
Characteristics Switch DEXP GP5
Classification
Type
switch
Model
DEXP GP5
Type
uncontrolled
Switching Method
store and forward
Switch Layer Levels
L2
Placement
wall-mounted, tabletop
Hardware
Cooling
passive
PoE
Support For PoE
yes
PoE Port Count
4
PoE Standards
PoE+ (802.3at), PoE (802.3af)
PoE Budget
58 W
Ports
Ethernet Port
1000BASE-T, 10BASE-T, 100BASE-TX
Base Data Transfer Rate
1000 Mb/s, 100 Mb/s
Total Number of Network Switch Ports
5 x RJ-45
Number of Copper Ports (RJ-45)
5
RJ-45 Copper Connector Speed
5 x 1000 Mb/s
1 Gb/s Port Count
5
Number of SFP Ports
0
Combo Ports (RJ-45/SFP)
none
Console Port
none
Performance
MAC Address Table Size
2000
Internal Throughput
10 Gbit/s
Packet Processing Speed
7.44
Packet Buffer Memory
1 MB
Functionality and Software
Standards Support
IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
Functions
mode selection, VLAN, flow control
QoS Prioritization
none
Lightning Protection
yes
Operating Conditions
Operating Temperature
from 0°C to +40°C
Operating Humidity
from 10% to 90%, without condensate
Additional Information
Noise Level
0 dB
Power Type and Voltage
DC 51V/1.25А
Power Consumption
63.7 W
Indicators
activity, PoE, power, Link
Package Contents
power adapter, documentation, installation kit
Dimensions and Weight
Width
100 mm
Depth
100 mm
Height
26 mm
Dimensions and Weight in Packaging
Package Width
140 mm
Package Height
70 mm
Packaging Depth
241 mm
Packaged Weight
0.72 kg
Description

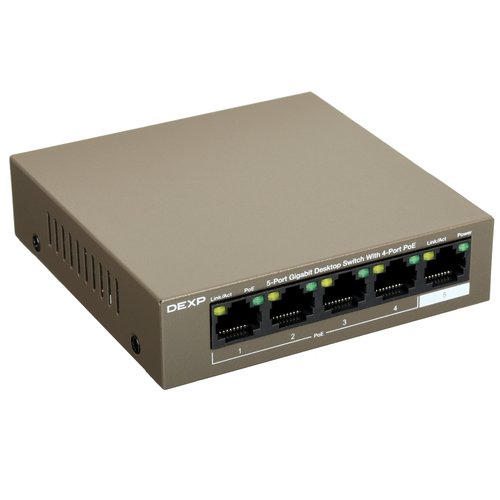

The DEXP GP5 switch serves as a network splitter. It is convenient for connecting devices located in another room and keeps a stable network signal. With an unmanaged switch you can form home networks by connecting to its ports a PC, router, TV, game console, and other equipment.
DEXP GP5 is equipped with 5 ports, among which 4 support PoE technology. This makes the switch compatible with IP cameras, access points. The copper RJ-45 ports transmit data at a speed of 1000 Mbps. A long cable will be required to run to the router. You won't have to pull a patch cord.
DEXP GP5 is equipped with 5 ports, among which 4 support PoE technology. This makes the switch compatible with IP cameras, access points. The copper RJ-45 ports transmit data at a speed of 1000 Mbps. A long cable will be required to run to the router. You won't have to pull a patch cord.
