Twisted pair DEXP TP5cFUTP305G

[F/UTP, pairs 4, cat. 5e, single-core, core ⌀ - 0.5 mm, conductor - copper, 305 m, indoor use] details

Not on sale

Length (m)
Material
  • Characteristics
  • Feedback 509
  • Service rating (Reliability assessment)

Characteristics Twisted pair DEXP TP5cFUTP305G

General parameters

Type
twisted pair
Model
DEXP TP5cFUTP305G
External Insulation Color
gray
AWG Standard
24

Twisted Pair Specifications

Twisted Pair Type
F/UTP
Category
5e
Number of Pairs
4
Number of Cores
8
Cable Shielding
none
Conductor Structure
single-core
Conductor Material
copper
Conductor Cross-Section Thickness
0.5 mm
Max Data Transfer Speed
1000 Mbit

Design

Length
305 m
For Outdoor Installation
none
Packaging Type
coil
Cable
none
Outer Insulation Material
PVC (polyvinyl chloride)

Dimensions and Weight in Packaging

Package Width
395 mm
Package Height
235 mm
Packaging Depth
395 mm
Packaged Weight
13.89 kg

Description

The DEXP F/UTP TP5cFUTP305G twisted pair cable corresponds to the FTP type, which features increased protection against external electromagnetic interference. Compliance with Category 5e makes it possible to use it for deploying 100-megabit and gigabit networks. The product is designed for indoor installation.

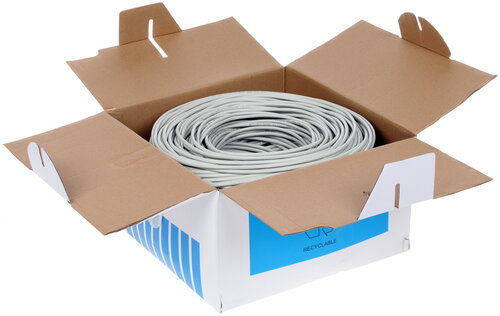

The DEXP F/UTP TP5cFUTP305G twisted pair cable consists of 4 pairs of solid copper conductors. The cable insulation reliably protects it from accidental mechanical impacts. You will not experience difficulties when laying the cable under standard operating conditions. The box containing the twisted pair holds 305 m of cable. The packaging is suitable for long-term storage of the product both before and after unpacking.
