#7959659
Electric generator Gasoline Huter DY6500L
[phase configuration: 1, spare, 220 V, 5.5 kW, AVR, 10 A, tank - 22 L, 71 dB, 70.1 kg] details
Not on sale
Accessories
Characteristics Electric generator Gasoline Huter DY6500L
General parameters
Type
electric generator
Model
Huter DY6500L
Manufacturer Code
[64/1/6]
Basic characteristics
Type
synchronous
Startup
manual
Housing Design
open
Winding Material
copper
Inverter
none
Technical specifications
Max Power
5.5 kW
Nominal Power At 220V
5 kW
Max Power at 220V
5.5 kW
Voltage
220 V
Current Output
10 A
Outlets
220V/16A (2 pcs)
Generator Excitation System
brush
12V Output
none
Frequency
50 Hz
Display
none
Functions/Modes
Intended Use
spare
Voltmeter
yes
Overload Protection
yes
Number of Phases
1
Auto Start Support (AVR)
none
Voltage Stabilization
AVR
Hour Meter
none
Fuel Level Display
yes
Engine Cooling
compressed air
Motor
Volume
188 cm³
Motor Power
13 hp
Full Tank Runtime
10 h
Engine Cycle
four-stroke
Engine Model
Huter 188F
Oil Level Sensor
yes
Engine Crankcase Oil Capacity
1.1 L
Fuel Tank Capacity
22 L
Number of Cylinders
1 pcs
Fuel Type
gasoline
Oil Type
API SF, SAE 10W-40, API SL, API SJ
Supported Fuel Brands
AI-92
Fuel Consumption (Approx.)
2.2 L/h
Additional Information
Protection Class
IP23
Noise Level
71 dB
Transport Wheels
none
Transport Handles
none
12V Battery Included
none
Automatic Voltage Regulator (AVR) Module Included
none
Spark Plug Model
F7TC, F6TC
Container
none
Package Contents
set of rubber mounts with nuts, socket breaker bar, spark plug wrench, documentation, plug - 2 pcs.
Dimensions and Weight
Length
700 mm
Width
535 mm
Height
570 mm
Weight
70.1 kg
Packaged Length
700 mm
Packaged Width
560 mm
Packaged Height
570 mm
Packaged Weight
72.1 kg
Description

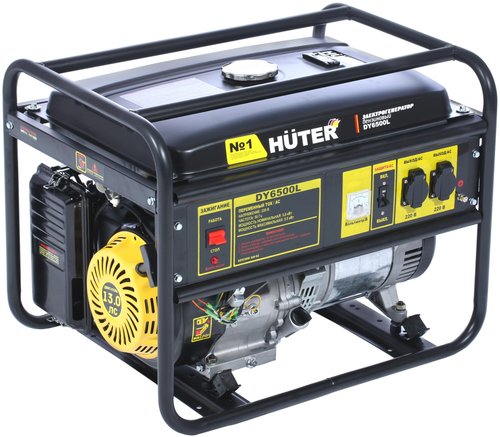

The Huter DY6500L gasoline generator is capable of delivering power up to 5.5 kW at a voltage of 220 V to power construction equipment, tools, and lighting systems. Featuring substantial power output, it can be used at tourist bases, campsites, and in remote areas lacking a centralized power supply.
The equipment of the Huter DY6500L generator is protected against impacts and other damage by a tubular frame, which can also be used by two people to carry the 84 kg unit from place to place. The 13 hp four-stroke engine that drives the generator consumes AI-92 gasoline economically and can operate for up to 11 hours on a single full tank of fuel (22 liters).
