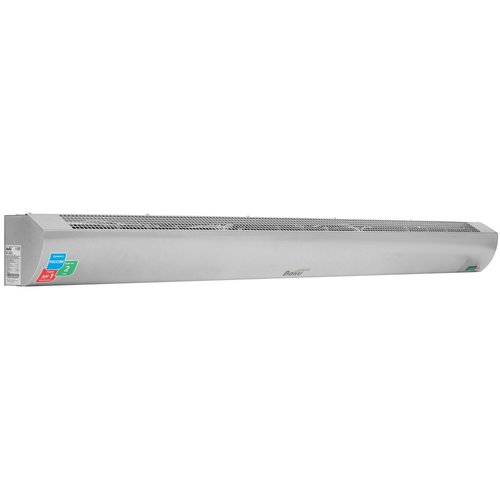

Air curtain Ballu BHC-L15S09-M with a remote BRC-S
[9800 W, 400 V / 50 Hz, STITCH (СТИЧ), 1050 m³/h] details
Not on sale
Characteristics Air curtain Ballu BHC-L15S09-M with a remote BRC-S
General parameters
Type
air curtain
Model
Ballu BHC-L15S09-M
Manufacturer Code
[НС-1485658]
Body Color
silver
Performance and Functionality
Max Heat Output
9800 W
Thermal Power Levels
4900 W, 9800 W
Number of Heating Modes
2
Ventilation Without Heating
yes
Airflow
1050 m³/h
Airflow Velocity
8.2 m/s
Noise Level
53 dB
Control
Controls
wired wall-mounted controller
Thermal Power Regulation
yes
Temperature Adjustment
yes
Set Temperature Range
+5°C to +35°C
Case and Installation
Heating Element Type
STITCH (СТИЧ)
Housing Features
anti-corrosion housing coating
Installation Method
horizontal
Max Mounting Height
2.5 m
Safety
Overheating Protection
yes
IP Rating (Dust/Moisture Resistance)
IP10
Insulation Rating
class I
Power Specifications
Power Supply
from mains
Power Connection Type
via wiring
Power Supply Voltage
400 V / 50 Hz
Motor Power Consumption
170 W
Current Consumption
16 A
Additional Information
Package Contents
documentation, BRC-S remote
Extra
one ventilation mode, power indicator
Dimensions and Weight
Width
157.5 cm
Height
15 cm
Depth
15.5 cm
Air Curtain Weight
11.8 kg
Packaged Dimensions and Weight
Box Width
165.6 cm
Box Height
16.7 cm
Box Depth
18.5 cm
Weight Boxed
13.1 kg
Description
The Ballu BHC-L15-S09-M air curtain is made in a low-profile metal body with a silver anti-corrosion coating. It is designed to protect doorways from the penetration of cold and warm air masses into the room. Inside is a STITCH heating element, which is characterized by uniform heating and low noise levels.
The Ballu BHC-L15-S09-M air curtain comes with a wired wall controller for operation. It is equipped with two heating modes with power up to 9000 W and ventilation without heating. For safety, an automatic shut-off technology in case of overheating is implemented.
