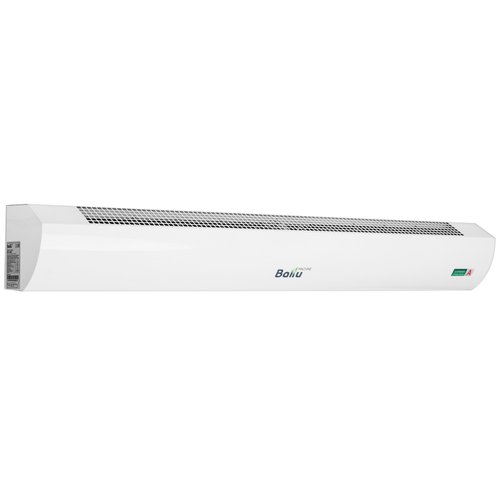

Air curtain Ballu BHC-L10S06 with a remote BRC-S
[6000 W, 220 V / 50 Hz, STITCH (СТИЧ), 700 m³/h] details
Not on sale
Characteristics Air curtain Ballu BHC-L10S06 with a remote BRC-S
General parameters
Type
air curtain
Model
Ballu BHC-L10S06
Manufacturer Code
[НС-1485649]
Body Color
white
Performance and Functionality
Max Heat Output
6000 W
Thermal Power Levels
3000 W, 6000 W
Number of Heating Modes
2
Ventilation Without Heating
yes
Airflow
700 m³/h
Airflow Velocity
8.2 m/s
Noise Level
52 dB
Control
Controls
wired wall-mounted controller
Thermal Power Regulation
yes
Temperature Adjustment
yes
Set Temperature Range
+5°C to +35°C
Case and Installation
Heating Element Type
STITCH (СТИЧ)
Housing Features
anti-corrosion housing coating
Installation Method
horizontal
Max Mounting Height
2.5 m
Safety
Overheating Protection
yes
IP Rating (Dust/Moisture Resistance)
IP10
Insulation Rating
class I
Power Specifications
Power Supply
from mains
Power Connection Type
via wiring
Power Supply Voltage
220 V / 50 Hz
Motor Power Consumption
100 W
Current Consumption
28 A
Additional Information
Package Contents
documentation, BRC-S remote
Extra
one ventilation mode, power indicator
Dimensions and Weight
Width
108 cm
Height
15 cm
Depth
15.5 cm
Air Curtain Weight
7.8 kg
Packaged Dimensions and Weight
Box Width
117.8 cm
Box Height
16.7 cm
Box Depth
18.5 cm
Weight Boxed
8.8 kg
Description
The Ballu BHC-L10-S06 air curtain creates a directed airflow and protects against the penetration of cold or warm air masses from outside the room. It is designed for installation above doorways up to 2.5 m high in offices, retail pavilions, and public establishments. The STITCH heating element ensures uniform heating and low noise levels.
The Ballu BHC-L10-S06 air curtain is built in a low-profile metal housing. It features two heating modes with a power output of up to 6000 W and ventilation without heating. Control is carried out using a wired wall controller. Overheat protection technology is implemented to increase safety.
