Mini PC DEXP Atlas H587

#5682369

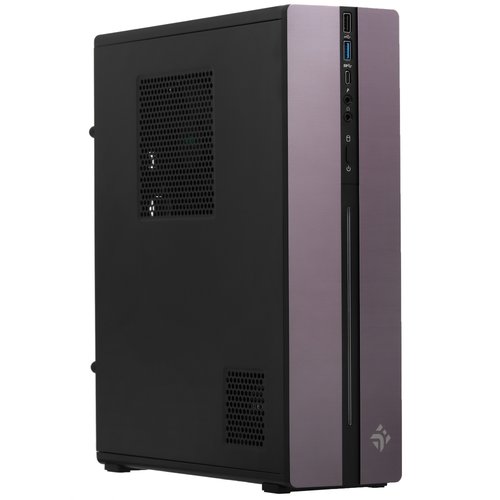

Mini PC DEXP Atlas H587

[Intel Core i5-12400, 6 x 2.5 GHz, 16 GB DDR4, SSD 512 GB, no OS, 1 x DisplayPort, 1 x HDMI, 1 x VGA (D-Sub), Intel H610, power supply - 350 W] details

3 | 2

Not on sale

Accessories

  • Characteristics
  • Feedback 2
  • Instructions and files

Characteristics Mini PC DEXP Atlas H587

General parameters

Type
mini PC
Model
DEXP Atlas H587
Series
DEXP Atlas
Part of Russian Industrial Registry
none
Housing form Factor
SFF (compact)
Body Color
black

Software

Operating System
no OS

Processor

CPU Model
Intel Core i5-12400
Total Number of Cores
6
Number of Performance Cores
6
Number of Efficiency Cores
0
Number of Threads
12
Base Clock for Performance Cores
2.5 GHz
Max Performance Core Frequency
4.4 GHz
Efficient Cores Base Clock
0 GHz
Efficiency Core Max Clock Speed
0 GHz

Motherboard

Socket
LGA 1700
Chipset
Intel H610
Number of RAM Slots
2

RAM

RAM Type
DDR4
RAM Form Factor
DIMM
RAM Frequency
3200 MHz
Number of Installed Modules
2
Total RAM
16 GB

Video Card

GPU Type
built-in
Integrated GPU Model
Intel UHD Graphics 730
Discrete GPU Model
none

Data storage devices

Solid State Drive (SSD) Configuration
512 GB M.2 PCIe
Hard Drive (HDD) Configuration
none

Front Panel Connectors

USB Type-A Ports
1 x USB 3.2 Gen 1, 1 x USB 2.0
USB Type-C Ports
1 x USB 3.2 Gen 1
Audio Connectors
3.5 mm jack (microphone), 3.5 mm jack (audio)
Card Reader
none
Optical Drive
none

Connectors

Rear Panel USB Type-A Ports
4 x USB 2.0, 2 x USB 3.2 Gen 1
Rear Panel USB Type-C Ports
none
Video Ports
1 x HDMI, 1 x VGA (D-Sub), 1 x DisplayPort
Video Connector Version
HDMI 2.1, DisplayPort 1.4
Analog Audio Connector Count
3
Other Peripheral Ports
PS/2 (combo)

Internet/Data Transfer

Network Adapter Speed
1 Gbit/s
Wi-Fi Standard
none
Bluetooth Version
none

Additional Information

Side Panel Window
none
Power Supply Wattage
350 W
Keyboard and Mouse Included
none
Features
power supply 80 PLUS Standard

Dimensions

Length
293 mm
Width
96 mm
Height
338 mm

Configuration

Processor
Intel Core i5-12400
Motherboard
MSI PRO H610M-G
CPU Cooling
DEEPCOOL Theta 21 PWM [LGA1700]
Power Supply
DEXP TFX 350W (80+ Standard)
Case
DEXP LP-81002

Description

The DEXP Atlas H587 Core i5-12400/16GB/SSD 512GB/No OS PC in black is assembled in an ultra-slim black SFF case. It can be placed on a desk in either a vertical or horizontal position. The PC is equipped with a 6-core Intel Core i5-12400 processor. Under high loads, it automatically increases the clock speed from 2.5 to 4.4 GHz. This performance is sufficient for office tasks and entertainment content playback.
The DEXP Atlas H587 Core i5-12400/16GB/SSD 512GB/No OS PC is equipped with DDR4 RAM with a total capacity of 16 GB. It allows keeping more than 20 browser tabs open or working in several applications simultaneously. The Intel UHD Graphics 730 subsystem is responsible for displaying images on the monitor. Its capabilities are sufficient for watching high-resolution video or running casual games. The PC includes a built-in 512 GB solid-state drive. It can store large spreadsheets or text documents, as well as favorite music, photo archives, and movies.
