#4872909

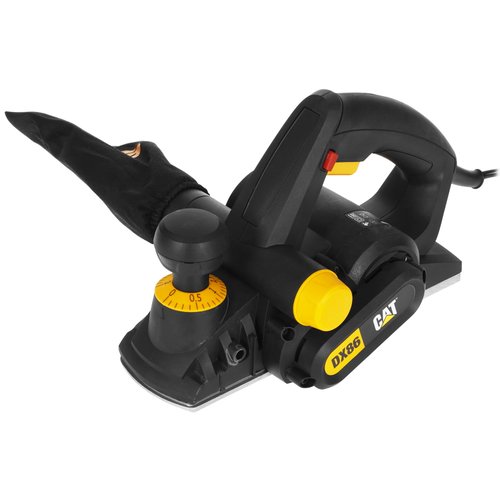

Electric planer CAT DX86
[900 W, 16000 RPM, depth - 3 mm, width - 82 mm, from mains, 3.1 kg] details
Not on sale
Characteristics Electric planer CAT DX86
General parameters
Type
electric planer
Model
CAT DX86
Technical specifications
Class
semi-professional
Engine Type
brushed
Power
900 W
Planing Width
82 mm
Max Planing Depth
3 mm
Minimum Rabbet Cutting Depth
16 mm
Max RPM
16000 RPM
Workpiece Surface Protection (Parking)
none
Number of V-Grooves on Sole
3
Chip Ejection Side
left/right
Noise Level
80 dB
Functions/Modes
Soft Start
none
Accidental Start Protection
yes
Maintaining Constant Speed Under Load
none
Parallel Guide
yes
Vacuum Cleaner Support
yes
Rabbet Cutting
yes
Overload Protection
yes
Power
Power Supply Type
from mains
Mains Voltage
220 V
Additional Information
Rubber Grip
yes
Packaging Type
cardboard box
Package Contents
dust container, parallel stop, documentation
Dimensions and Weight
Length
330 mm
Width
165 mm
Height
210 mm
Weight
3.1 kg
Packaged Length
425 mm
Packaged Width
210 mm
Packaged Height
270 mm
Packaged Weight
3.7 kg
Description
With compact dimensions and a weight of just 2.8 kg, the CAT DX86 electric planer is a great choice for domestic or semi-professional carpentry work. The model features a 900 W electric motor and a blade rotating at 16000 rpm, which planes an 82 mm wide strip of wood material. The rotary knob, which also serves as the front handle of the tool, allows setting the planing depth from 0 to 3 mm.
During planing, the CAT DX86 electric planer, powered by a single-phase domestic mains supply, can eject shavings from the work area to either the right or the left. The tool comes with a plug that blocks one of the outlet ports and a dust and shaving collection bag. In addition, to keep the workspace clean, the planer can be connected to an industrial vacuum cleaner.
