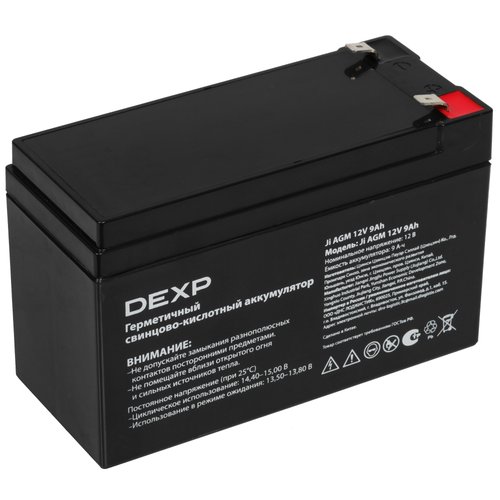

Uninterruptible power supply battery DEXP Ji AGM 12V 9Ah
[12 V, 9 Ah] details
Not on sale
Characteristics Uninterruptible power supply battery DEXP Ji AGM 12V 9Ah
General parameters
Type
uninterruptible power supply battery
Model
DEXP Ji AGM 12V 9Ah
Design
AGM
Main Color
black
Composition
lead-acid
Technical specifications
Capacity
9 Ah
Terminals
T2/F2 (for 250 terminals)
Voltage
12 V
Max Charging Current
2.25 A
Max Discharge Current
135 A
Internal Resistance
18 mΩ
Number of Full Charge Cycles
300
Number of Cells in the Battery Pack
6
Service Life
five years
Operating Temperature Range
Charge
-20 °C ~ 50 °C
Storage
-20 °C ~ 50 °C
Discharge
-20 °C ~ 50 °C
Self-Discharge
3% per month at 25 °C
Additional Information
Housing Material
ABS plastic
Operating Temperature
-20 °C ~ +50°C
Carrying Handle
none
Structural Features
leakage protection
Extra
IP20 protection
Dimensions and Weight
Length
151 mm
Width
65 mm
Height
95 mm
Height Including Terminal
101 mm
Weight
2.51 kg
Dimensions and Weight in Packaging
Package Width
375 mm
Package Height
329 mm
Packaging Depth
152 mm
Packaged Weight
2.58 kg
Description
The DEXP Ji AGM 12V 9Ah lead-acid rechargeable battery for UPS has a capacity of 9 Ah at a standard voltage of 12 V. The model's compatibility with specific uninterruptible power supplies is determined by its dimensions of 151x65x94 mm and T2/F2 connection terminals. Proper operation of the device requires a charging current of 2.25 A. The number of full charge cycles reaches 300, while the service life of the DEXP Ji AGM 12V 9Ah battery reaches up to 5 years. At a temperature of 25 °C, the self-discharge of the model does not exceed 3%. The device has an IP20 protection rating and is leak-proof.
