IP camera TP-Link TC70

#9968144

IP camera TP-Link TC70

[rotating, 1920x1080, 15 fps, CMOS, 2 MP, Wi-Fi, night vision, motion sensor] details

4.77 | 4108

Not on sale

Color
Megapixels (MP)
2 3 4 five
Version
C TC

Accessories

  • Characteristics
  • Feedback 4108
  • Instructions and files

Characteristics IP camera TP-Link TC70

General parameters

Type
IP camera
Model
TP-Link TC70
Manufacturer Code
[1856835]
Main Color
white
Housing Material
plastic
Construction Type
rotating
Camera Installation
indoor
Mount
wall-mounted, ceiling-mounted

Matrix

Display Device Technology
CMOS
Image Sensor Size
1/2.9"
Image Sensor Pixels
2 MP

Optics and illumination

Focal Length
4 mm
Aperture
f/2.0
Horizontal Field of View
75.2°
Vertical Field of View
40.8°
Diagonal Field of View
88.3°
Rotation Angle
360 deg
Tilt Angle
114 deg
Backlight
infrared
Lighting Distance
9 m


black-and-white, color
Max Resolution
1920x1080
Max Frame Rate
15 fps
Video File Compression Format
H.264

Audio

Built-In Microphone
yes
Built-In Speaker
yes

Connection Interfaces

Connection Type
wireless
Cellular Network Standards Support
none
Support For PoE
none
Audio Connectors
none

Network

Wi-Fi
yes
Wi-Fi Standard
4 (802.11n)
Wi-Fi Frequency Range
2.4 GHz
RJ45 Connector
none
IPv6
none
Supported Protocols
TCP/IP, ARP, RTSP, ICMP, DHCP, ONVIF, HTTP, UDP, NTP, DNS, HTTPS

Functions and Capabilities

Night Vision
yes
Motion Detection System
yes
Alarm Input
none
Alarm Outputs
none
Internal Battery
none
Video Archive
to cloud, to memory card
Memory Card Support
microSDXC
Max Memory Card Volume
128 GB
Settings/Options
private mode
Pan-Tilt Control
yes
Control via Mobile Device
yes

Smart Home

Mobile App
TP-Link Tapo
Manufacturer's Ecosystem
TP-Link Tapo
Compatible Smart-Home Ecosystems
Amazon Alexa, Google Home
Voice Assistant Support
Alexa, Google Assistant

Additional Information

Operating Temperature
from 0° to 40° C
Operating Humidity
from 10% to 90% (without condensate)
Protection Class
none
Package Contents
power adapter, documentation, mounting kit
Features
alarm
Power Type and Voltage
DC 9V/0.6А
Anti-Vandal Design
none

Dimensions and Weight

Length
85 mm
Width
86.6 mm
Height
117.7 mm

Description

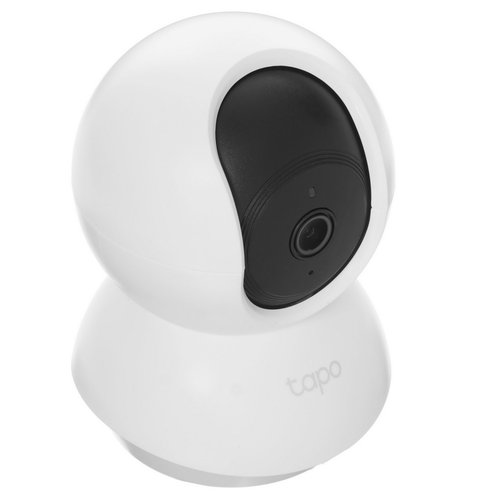

The TP-Link TC70 IP camera with a pan/tilt mechanism is designed for indoor video surveillance. It is equipped with a smart motion detection system with sound alarm notifications. The 2 MP CMOS sensor delivers realistic images in color or black and white.
Infrared illumination with a range of 9 meters is implemented for low-light shooting. The integrated speaker and microphone ensure two-way audio communication. Video footage can be stored on a microSD memory card. The TP-Link TC70 camera connects via a Wi-Fi wireless interface.
