#4872921

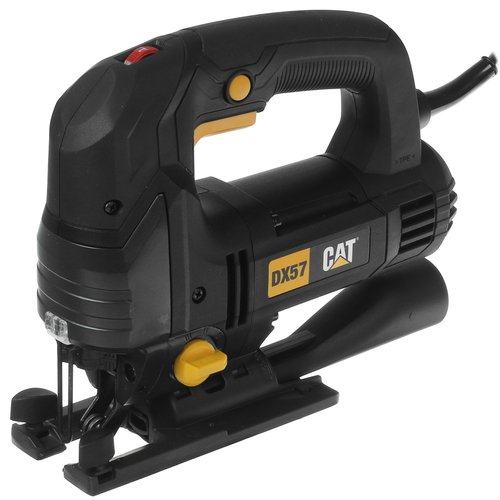

Electric jigsaw CAT DX57
[750 W, 3000 strokes/min, wood cut - 100 mm, orbital action, RPM adjustment, from mains] details
Not on sale
Accessories
Characteristics Electric jigsaw CAT DX57
General parameters
Type
electric jigsaw
Model
CAT DX57
Technical specifications
Class
semi-professional
Engine Type
brushed
Speed Settings
6
Power
750 W
Min Saw Blade Movement Frequency
800 strokes/min
Max Blade Stroke Frequency
3000 strokes/min
Stroke Length
26 mm
Base Plate Type
cast
Sole Material
steel
Max Wood Kerf Depth
100 mm
Max Metal Kerf Depth
10 mm
Max Non-Ferrous Metal Kerf Depth
25 mm
Functions/Modes
Pendulum Action
yes
Anti-Vibration System
none
Quick-Release Blade Mechanism
yes
Vacuum Cleaner Support
yes
Stroke Rate Adjustment
yes
Laser Marker
none
Soft Start
none
Maintains Constant Stroke Rate
none
Backlight
yes
Sole Plate Bevel Adjustment
yes
Base Plate Bevel Angles
45 deg
Number of Pendulum Stroke Positions
4
Sawdust Blower
none
Protective Shield
none
Easy Brush Access
none
Power
Power Supply Type
from mains
Mains Voltage
220 V
Cable Length
3 m
Frost-Resistant Wire
none
Additional Information
Handle Shape
D-shaped
Rubber Grip
yes
Case Included
none
Blade Storage Compartment
none
Noise Level
91 dB
Packaging Type
cardboard box
Package Contents
saw blade, dust extraction adapter, documentation, parallel guide rail
Dimensions and Weight
Length
260 mm
Width
70 mm
Height
220 mm
Weight
3.1 kg
Packaged Length
244 mm
Packaged Width
320 mm
Packaged Height
110 mm
Packaged Weight
3.6 kg
Description
The CAT DX57 electric jigsaw is a reliable, high-performance power tool for working with workpieces made of wood, thin sheet metal, and various types of plastic. Belonging to the professional class of devices, this model is a great addition to a small workshop or manufacturing facility. The device is powered by a 750-watt motor that ensures blade movement at a rate of 800 to 3000 strokes/min, allowing the jigsaw to easily handle cutting any wood species, even the hardest ones.
The CAT DX57 electric jigsaw is equipped with a stamped base made of high-quality steel. Depending on the processed material, the maximum cutting depth reaches 100 mm (for wood), 10 mm (for metal), or 25 mm (for non-ferrous metal). The pendulum action extends the service life of the tooling and speeds up the cutting process. The quick-clamp mechanism allows for fast and easy blade changes. The ability to connect a vacuum cleaner helps keep the work area clean from wood chips and other sawing debris.
The CAT DX57 electric jigsaw is equipped with a stamped base made of high-quality steel. Depending on the processed material, the maximum cutting depth reaches 100 mm (for wood), 10 mm (for metal), or 25 mm (for non-ferrous metal). The pendulum action extends the service life of the tooling and speeds up the cutting process. The quick-clamp mechanism allows for fast and easy blade changes. The ability to connect a vacuum cleaner helps keep the work area clean from wood chips and other sawing debris.
