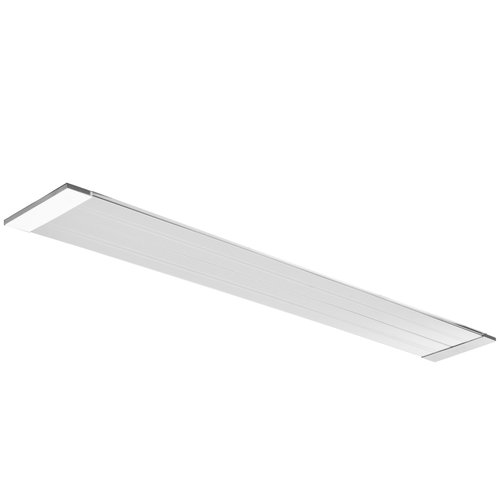

Infrared heater Ballu BIH-APL-3.0-M

#9976207

Infrared heater Ballu BIH-APL-3.0-M

[panel, 3000 W, 60 m², ceiling-mounted, silver] details

Not on sale

  • Characteristics
  • Feedback 144
  • Service rating (Reliability assessment)
  • Instructions and files

Characteristics Infrared heater Ballu BIH-APL-3.0-M

General parameters

Type
infrared heater
Model
Ballu BIH-APL-3.0-M
Manufacturer Code
[НС-1455725]
Body Color
silver
Installation/Mounting Method
ceiling-mounted

Performance

Power
3000 W
Power Levels
3000 W
Temperature Adjustment
none
Recommended Heating Area
60 m²
Infrared Wavelength
long
Min Installation Height
2.5 m
Max Mounting Height
15 m

Device Elements

Heating Element Type
panel
Housing Material
steel
Protective Grate
none
Carrying Handle
none
Casters for Mobility
none
Tilt/Pivot Adjustment
none

Control

Control Type
external management (optional)
Control via Mobile Device
none
Management App
none
Smart Home Ecosystem
none
Voice Assistant
none
Display
none

Safety

Overheating Protection
none
Shutdown on Tilt
none
IP Rating (Dust/Moisture Resistance)
IP20
Insulation Rating
class I

Power Specifications

Power Supply
from mains
Power Connection Type
via wiring
Power Supply Voltage
230 V / 50 Hz
Current Consumption
13.1 A
Power Cord Length
0.1 m

Additional Information

Package Contents
documentation, installation kit
Extra
horizontal alignment, thermostat purchased separately

Dimensions and Weight

Length
1795 mm
Width
260 mm
Height
45 mm
Heater Weight
7.5 kg
Packaged Length
1820 mm
Packaged Width
280 mm
Packaged Height
55 mm
Packaged Weight
8 kg

Description

The Ballu BIH-APL-3.0-M infrared heater with a 3000 W panel element is suitable for serving an area of up to 60 m². The device is designed for spot heating in rooms with high ceilings up to 15 m, such as offices, cafes, hotels, and educational institutions. Thanks to infrared technology, heat is transferred to surrounding interior objects and surfaces, which then warm the air itself.
The Ballu BIH-APL-3.0-M features a durable steel body. A special bracket with hanging mounts ensures easy installation on the ceiling or wall. The heater connects to the mains via direct electrical wiring.
