PC ARDOR GAMING NEO M323

#5930839

PC ARDOR GAMING NEO M323

[Intel Core Ultra 5 225, 6 x 3.3 GHz, 16 GB DDR5, GeForce RTX 5060, SSD 1000 GB, no OS, 1 x HDMI, 3 x DisplayPort, Intel B860, power supply - 500 W] details

0

Not on sale

Accessories

  • Characteristics
  • Feedback 0
  • Instructions and files

Characteristics PC ARDOR GAMING NEO M323

General parameters

Type
PC
Model
ARDOR GAMING NEO M323
Series
ARDOR GAMING NEO
Part of Russian Industrial Registry
none
Housing form Factor
Mini-Tower
Body Color
black

Software

Operating System
no OS

Processor

CPU Model
Intel Core Ultra 5 225
Total Number of Cores
10
Number of Performance Cores
6
Number of Efficiency Cores
4
Number of Threads
10
Base Clock for Performance Cores
3.3 GHz
Max Performance Core Frequency
4.9 GHz
Efficient Cores Base Clock
2.7 GHz
Efficiency Core Max Clock Speed
4.4 GHz

Motherboard

Socket
LGA 1851
Chipset
Intel B860
Number of RAM Slots
2

RAM

RAM Type
DDR5
RAM Form Factor
DIMM
RAM Frequency
5600 MHz
Number of Installed Modules
2
Total RAM
16 GB

Video Card

GPU Type
discrete
Integrated GPU Model
Intel Graphics
Discrete GPU Model
GeForce RTX 5060
Video Memory Type
GDDR7
Video Memory Size
8 GB

Data storage devices

Solid State Drive (SSD) Configuration
1 TB M.2 PCIe
Hard Drive (HDD) Configuration
none

Front Panel Connectors

USB Type-A Ports
1 x USB 3.2 Gen 1, 2 x USB 2.0
USB Type-C Ports
none
Audio Connectors
3.5 mm jack (microphone), 3.5 mm jack (audio)
Card Reader
none
Optical Drive
none

Connectors

Rear Panel USB Type-A Ports
3 x USB 3.2 Gen 1, 3 x USB 2.0
Rear Panel USB Type-C Ports
none
Video Ports
1 x HDMI, 3 x DisplayPort
Video Connector Version
HDMI 2.1b, DisplayPort 2.1b
Analog Audio Connector Count
3
Other Peripheral Ports
PS/2 (combo)

Internet/Data Transfer

Network Adapter Speed
2.5 Gbit/s
Wi-Fi Standard
none
Bluetooth Version
none

Additional Information

Side Panel Window
yes
Power Supply Wattage
500 W
Keyboard and Mouse Included
none
Features
power supply 80 PLUS Standard

Dimensions

Length
388 mm
Width
200 mm
Height
423 mm

Configuration

Processor
Intel Core Ultra 5 225
Motherboard
GIGABYTE B860M EAGLE V2
RAM
8GB ADATA XPG LANCER 5600MHz
RAM Stick Count
2 pcs
Graphics Card
Palit GeForce RTX 5060 Infinity 2 OC 8GB
SSD Storage
1TB M.2 NVMe MSI SPATIUM M461
CPU Cooling
DEEPCOOL AG300 (Design for ARDOR GAMING)
Power Supply
MSI A500DN ARD 500W (80+ Standard; Developed for ARDOR GAMING)
Case
MSI MAG FORGE M100R (Design for ARDOR GAMING)

Description

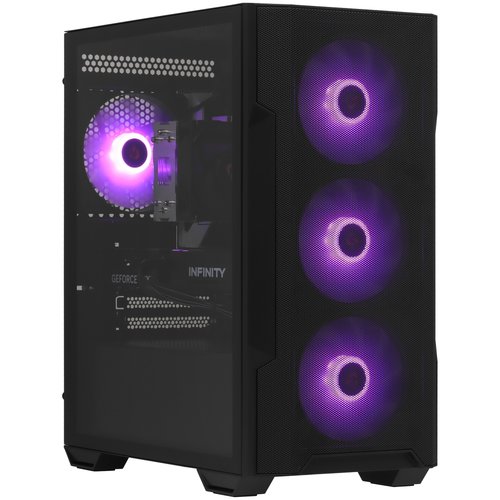

ARDOR GAMING NEO M323 PC is a gaming computer in a black case. The Mini-Tower form factor makes it suitable for limited spaces. The power of the 10-core Intel Core Ultra 5 225 processor is sufficient for demanding games. The 16 GB of RAM operates in dual-channel mode, doubling its bandwidth to accelerate multi-data processing and increase frame rates in games. The dedicated GeForce RTX 5060 graphics card ensures smooth gameplay at high and medium settings when running games in Full HD resolution. A 1000 GB SSD is provided for your game library.
The ARDOR GAMING NEO M323 PC is equipped with an 80 PLUS Standard certified power supply that generates minimal heat under high loads. HDMI, DisplayPort, USB Type-A, PS/2, and 3.5 mm jack ports are provided for monitors, peripherals, and audio headsets. The tempered glass side panel provides visual access to the internal build.
