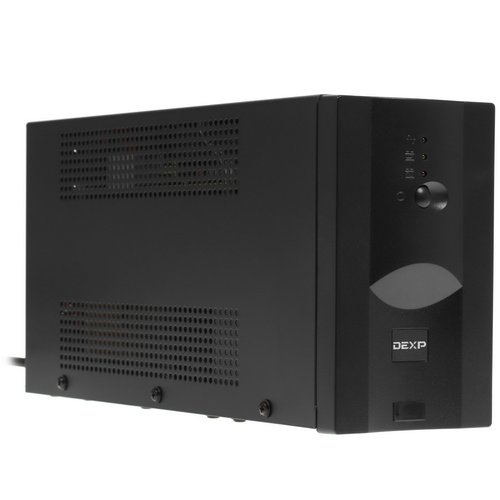

UPS DEXP MIX 850VA

#1236929

UPS DEXP MIX 850VA

[linear-interactive, 850 VA, 510 W, 2 × IEC 320 C13 (computer), 2 x CEE 7 (Type F outlet), RJ-11, RJ-45, USB] details

Not on sale

  • Characteristics
  • Feedback 624
  • Service rating (Reliability assessment)
  • Instructions and files

Characteristics UPS DEXP MIX 850VA

General parameters

Type
UPS
Model
DEXP MIX 850VA
Main Color
black
Type
linear-interactive
Form Factor
Tower

Technical parameters

Maximum Output Power
850 VA
Effective Power Output
510 W
Minimum Input Voltage
165 V
Max Input Voltage
295 V
Min Input Frequency
45 Hz
Max Input Frequency
55 Hz
Output Voltage Stability
± 10 %
Minimum Output Frequency
50 Hz
Max Output Frequency
60 Hz
Wave Form
modified sine wave
Runtime
5 min (390W)
Delay When Switching to Battery
4 ms
Safety Features
short-circuit protection, high-voltage surge protection, input voltage filtering, overload protection

Connectors

Number and Type of Power Output Connectors
2 × IEC 320 C13 (computer), 2 x CEE 7 (Type F outlet)
Number of Power Output Connectors (UPS)
4
Connectors/Ports
USB, RJ-11, RJ-45
Port Layout
vertical

Battery

Charging Time
8 h
Battery Voltage and Capacity
12V/8Ah
Replaceable Batteries
yes
Battery Hot Swap
none
Number of Batteries
1 pcs
External Battery Connection
none

Additional Information

Functions and Modes
AVR
Cold Start
yes
Sound Signals
overload, low battery level, battery-powered
Noise Level
45 dB
Operating Temperature
from 0 to +40°C
Package Contents
fuse, documentation, IEC cable, USB cable
Features
2 types of outlets

Dimensions and Weight

Depth
320 mm
Width
95 mm
Height
160 mm
Weight
6.5 kg

Description

The DEXP MIX 850VA UPS provides protection for sensitive computer equipment against power supply issues: mains noise, high-voltage surges, and short circuits. It belongs to the line-interactive type, utilizing the battery only during power outages. As a result, its battery lasts significantly longer than that of a conventional UPS.
During a blackout, the DEXP MIX 850VA switches connected devices to battery power, giving the user several minutes to properly save work and shut down applications.
