Wi-Fi adapter Mercusys MA30H

#5456508

Wi-Fi adapter Mercusys MA30H

[USB, 4 (802.11n), 5 (802.11ac), 1267 Mbit/s, 5 GHz, 2.4 GHz, antenna - external, transceiver - 20 dBm] details

Not on sale

  • Characteristics
  • Feedback 327
  • Instructions and files

Characteristics Wi-Fi adapter Mercusys MA30H

General parameters

Type
Wi-Fi adapter
Model
Mercusys MA30H
Main Color
black

Hardware

Connection Type
USB
USB Standard
USB 2.0
Bluetooth
none

Basic characteristics

Wi-Fi Standard
5 (802.11ac), 4 (802.11n)
Wi-Fi Class
AC1300
Frequency Range
5 GHz, 2.4 GHz
Max Wi-Fi Speed
1267 Mbit/s
Max Speed at 2.4 GHz
400 Mbit/s
Max Speed at 5 GHz
867 Mbit/s
Dual Band Operation
yes
Multi-Stream Data Transfer
MU-MIMO
Transmitter Power
20 dBm
Wireless Network Protection
WPA-PSK, WPA3-SAE, WPA2-PSK

Antenna

Type of Antenna
external
Antenna Type
non-removable
Antenna Count
1
Antenna Gain
5 dBi

Additional Information

Operating Temperature
from 0°C to +40°C
Humidity Level When Used
from 10% to 90% without condensate
Supported Operating Systems
Windows 11, Windows 10
Package Contents
documentation
Display
yes

Dimensions and Weight

Length
173.4 mm
Width
57.8 mm
Thickness
16.8 mm

Dimensions and Weight in Packaging

Package Width
150 mm
Package Height
40 mm
Packaging Depth
210 mm
Packaged Weight
104 g

Description

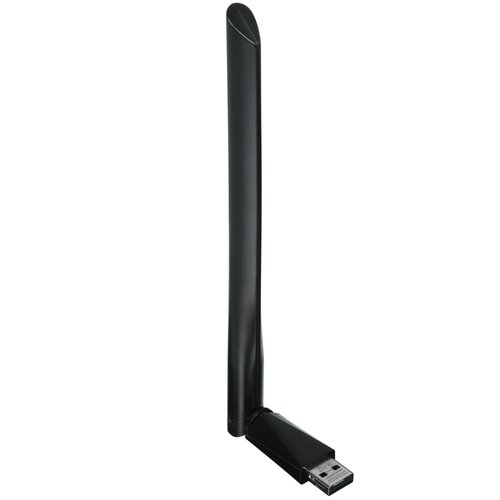

The Mercusys MA30H Wi-Fi adapter in a miniature black body is a solution for connecting a PC to wireless local area networks. If the system unit is not originally equipped with a built-in network expansion card, this USB-connected component will allow you to use Wi-Fi 4 (802.11n) or 5 (802.11ac) wireless LANs. Wi-Fi connection stability is achieved by a single external antenna that can be oriented toward the signal source.
The Mercusys MA30H PC Wi-Fi controller uses the 2.4 and 5 GHz Wi-Fi frequency bands for data transmission. Simultaneous data transmission across these two bands is possible, providing internal network connection speeds of up to 1267 Mbps. The module, featuring an LED indicator on the body, is compatible with system units running Windows 10-11.
