Exhaust hood inclined DEXP CH60B-SV black/black

#9296716

Exhaust hood inclined DEXP CH60B-SV black/black

[metal, 400 m³/h, 65 W, modes - bypass, width - 59.5 cm] details

Not on sale

Color
  • Characteristics
  • Feedback 6
  • Instructions and files

Characteristics Exhaust hood inclined DEXP CH60B-SV black/black

General parameters

Type
exhaust hood
Design
inclined
Model
DEXP CH60B-SV
Main Color
black
Border/Trim Color
black
Color as Stated by Manufacturer
black
Housing Material
glass
Panel/Trim/Rail Material
metal

Basic characteristics

Operating Modes
bypass
Max Performance
400 m³/h
Performance
400 m³/h (effective)
Number of Motors
1
Filter Included
grease
Noise Level
65 dB

Power

Motor Power
65 W
Power Consumption
67.5 W
Power Supply Voltage
220-240 V / 50 Hz
Standby Power Consumption
0 W
Power Cable Length
1.18 m

Control

Control Type
configuration
Speed Settings
3
Display
none
Timer
none
Turbo Airflow Mode
none
Interval Mode
none
Remote Control
none

Lighting

Lighting Type
LED lamp
Number of Lighting Bulbs
1 pcs
Power Per Lamp
2.5 W
Lighting Brightness Adjustment
none

Additional Information

Non-Return Valve
yes
Shock Absorber
none
Change Indicator
none

Built-in Dimensions

Cutout Width
59.5 cm
Minimum Installation Height
33.1 cm
Installation Depth
29.1 cm
Duct Diameter
15 cm
Minimum Clearance Above Electric Cooktop
65 cm
Minimum Clearance Above Hob Panel
65 cm

Dimensions and Weight

Width
59.5 cm
Height
109 cm
Depth
29.1 cm
Range Hood Weight
9 kg
Package Width
64.5 cm
Packaging Depth
38.5 cm
Packaged Weight
10.7 kg

Description

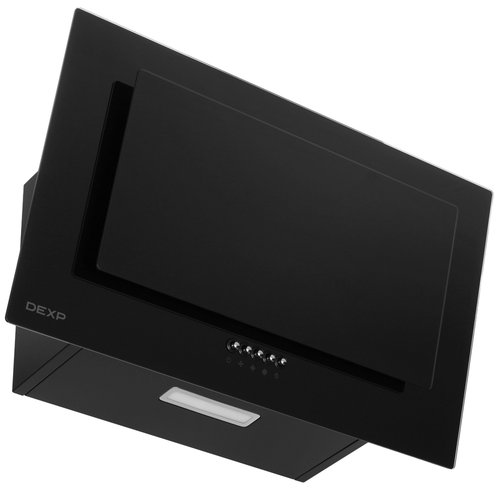

The DEXP CH60B-SV range hood is presented in a black body. The sloped glass panel with a smooth finish is easy to clean. Thanks to a capacity of 400 m³/h, thorough kitchen air purification from odors, steam, and soot is achieved. A push-button control panel is located at the bottom. Three speed settings make it convenient to adjust the airflow intensity depending on cooking volumes.
The DEXP CH60B-SV range hood is equipped with a removable metal filter. It traps grease particles and prevents them from settling on internal components. The anti-return valve stops odors and cold air from entering the room from the ventilation shaft. An energy-efficient 2.5 W LED lamp is installed to illuminate the cooking area.
