#9361282

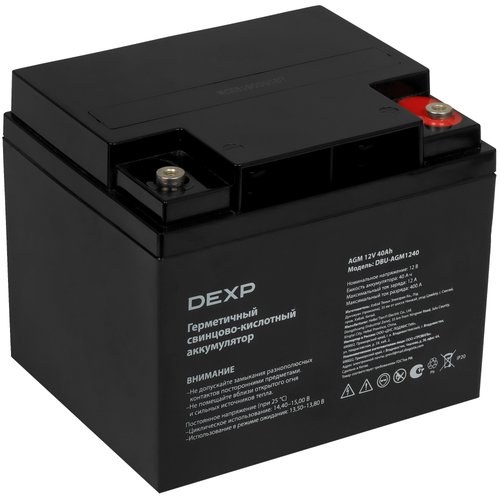

Uninterruptible power supply battery DEXP DBU-AGM1240
[12 V, 40 Ah] details
Not on sale
Characteristics Uninterruptible power supply battery DEXP DBU-AGM1240
General parameters
Type
uninterruptible power supply battery
Model
DEXP DBU-AGM1240
Design
AGM
Main Color
black
Composition
lead-acid
Technical specifications
Capacity
40 Ah
Terminals
Т6 (for M6 bolt)
Voltage
12 V
Max Charging Current
12 A
Max Discharge Current
400 A
Internal Resistance
12.5 mΩ
Number of Full Charge Cycles
300
Number of Cells in the Battery Pack
6
Service Life
3 years
Operating Temperature Range
Charge
-15 °C ~ 40 °C
Storage
-15 °C ~ 40 °C
Discharge
-15 °C ~ 50 °C
Self-Discharge
3% per month at 25 °C
Additional Information
Housing Material
ABS plastic
Operating Temperature
from -15 to +40°C
Carrying Handle
none
Structural Features
leakage protection
Extra
IP20 protection
Dimensions and Weight
Length
197 mm
Width
166 mm
Height
169 mm
Height Including Terminal
169 mm
Weight
12.2 kg
Description
Аккумуляторная батарея для ИБП DEXP DBU-AGM1240 оснащена клеммами Т6 под болт М6. АКБ подходит для хранения и использования при температуре окружающей среды от -15 °C до 40 °C. Батарея выполнена в ударопрочном корпусе из ABS-пластика с надежной защитой от утечек.
