Charger FinePower 4LA

#5096991

Charger FinePower 4LA

[10340, 10440, 14500, 16340, Li-Ion] details

Not on sale

  • Characteristics
  • Feedback 3
  • Service rating (Reliability assessment)
  • Instructions and files

Characteristics Charger FinePower 4LA

General parameters

Type
charger
Model
FinePower 4LA
Main Color
white

Basic parameters

Supported Battery Type
Li-Ion
Rechargeable Battery Size/Type
10340, 16340, 20700, 17355, 22650, 10440, 26650, 21700, 17670, 18500, 14500, 18650, 17500
Number of Charging Slots
4 pcs
Independent Charging
none
Type and Number of Batteries Included
none

Functions and Capabilities

Safety Features
short-circuit protection, reverse-polarity protection, fault monitoring, overvoltage protection

Security Functions

Safety Timer
yes
Malfunction Monitoring
yes
Reverse Polarity and Short-Circuit Protection
yes

Power and Charging

Input Voltage
DC 5V/2А
Output Voltage
4.2 V
USB output
yes

Additional Information

Display
none
On-Screen Data Display
LED indicators
Sliding Battery Connector
yes
Package Contents
documentation, USB cable

Dimensions and Weight

Packaged Weight
161 g

Description

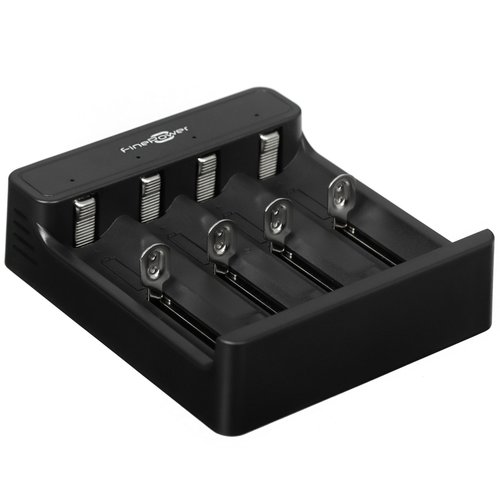

The FinePower 4LA battery charger is equipped with 4 independent slots for Li-Ion batteries. Fault detection, overload protection, reverse polarity protection, and short circuit protection make battery charging safe. The model automatically adjusts current: 0.5 A each when charging 4 batteries simultaneously, and 1 A each when batteries are placed in the 1st and 4th slots.
The FinePower 4LA indicates the charging process via LED indicators. A safety timer turns off the charger once capacity is restored or if the battery severely overheats. The slots feature sliding contacts for accurate fixation of batteries of various lengths. The charger comes complete with a USB cable for connecting to a PC or mains power via an adapter.
