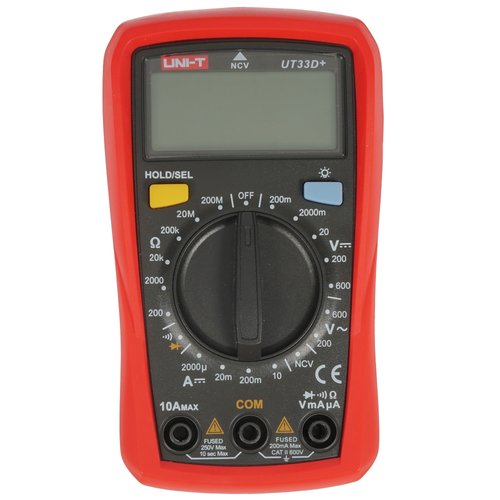

Multimeter UNI-T UT33D+

#5301948

Multimeter UNI-T UT33D+

[manual, up to 600 V, accuracy - 1 %, check for circuit breaks, check LEDs, screen backlight, auto turn off] details

4.88 | 410
Excellent reliability
199 000 UZS
Buy
Avail in 2 shops
Warranty: 12 mos.

Accessories

  • Characteristics
  • Feedback 410
  • Service rating (Reliability assessment)
  • Instructions and files

Characteristics Multimeter UNI-T UT33D+

General parameters

Type
multimeter
Model
UNI-T UT33D+
Manufacturer Code
[13-0058]

Types of Measurements

Types of Supported Electrical Measurements
alternating voltage (U~), direct current (I-), DC voltage (U-), resistance (R)
Transistor Gain h21
none
Circuit Integrity Check
yes
Diode Test
yes
Temperature Measurement
none
Other Tests and Measurements
non-contact voltage detection (NCV)

Information Display

Display Type
digital
Counts
1999
Number of Measurements Per Second
3
Basic Accuracy Rating
1 %

Measurement ranges and errors

Maximum DC Voltage, U-
600 V
Minimum DC Voltage, U-
0.2 V
Reading Accuracy U- (% + count)
±0.7% + 3
Maximum AC Voltage, U~
600 V
Minimum AC Voltage, U~
200 V
Reading Accuracy U~ (% + count)
±1.2% + 3
Maximum DC Current, I-
10 A
Minimum DC Current, I-
2 mA
Measurement Error I- (% + Counts)
±1% + 2
Maximum Resistance, R
200 MΩ
Minimum Resistance, R
200 Ω
Reading Accuracy R (% + count)
±0.8% + 2

Functions

Measurement Range Selection
manual
Memory Mode (Hold)
yes
Display Backlight
yes
Auto Shut-Off
yes
Sound Cue
yes

Safety and Operating Conditions

Max Operating Voltage
600 V
Safety Standards
CAT II 600 V
Operating Temperature Range
from 0 to +40 °C
Operating Humidity Range
0% - 75%

Power

Power Supply Type
battery
Number of Batteries/Cells Included
2 pcs
Battery/Cell Type
AAA
Battery Voltage
1.5 V

Additional Information

Packaging Type
box
Package Contents
documentation, measuring probes
Part of the State Register
none

Dimensions and Weight

Length
130 mm
Width
75 mm
Height
36 mm
Weight
0.15 kg
Packaged Length
220 mm
Packaged Width
120 mm
Packaged Height
50 mm
Packaged Weight
0.29 kg

Description

The UNI-T UT33D+ 13-0058 multimeter is a handy handheld device for testing diode functionality, circuit continuity, and non-contact voltage detection. The device is also capable of measuring temperature and basic parameters (voltage, resistance, DC current). The IP21-rated instrument operates with an accuracy error of only 1%.
The UNI-T UT33D+ 13-0058 device is complemented by clear acoustic signals and a backlit display. The measurement range is selected manually, and important data is saved in memory mode. Operation requires two AAA batteries, whose charge level is conserved thanks to the auto-off function. The package includes test leads.
