PC Builder 🎮
PC case A4Tech Bloody BD-CC105 [BD-CC105-BK] black

#5609875

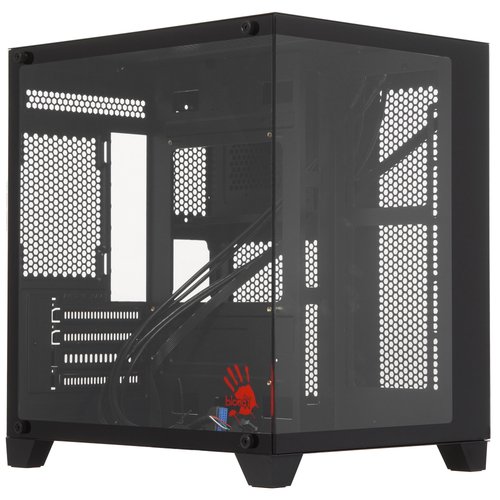

PC case A4Tech Bloody BD-CC105 [BD-CC105-BK] black

[Mini-Tower, Micro-ATX, USB 2.0 Type-A, USB 3.2 Gen 1 Type-A, USB 3.2 Gen 1 Type-C] details

4.58 | 12
749 000 UZS
Buy
Avail in 1 shop
Color
Warranty: 12 mos.

Accessories

  • Characteristics
  • Feedback 12

Characteristics PC case A4Tech Bloody BD-CC105 [BD-CC105-BK] black

General parameters

Type
PC case
Model
A4Tech Bloody BD-CC105
Manufacturer Code
[BD-CC105-BK]

Form Factor and Dimensions

Housing Size Standard
Mini-Tower
Motherboard Orientation
vertical
Depth
345 mm
Width
270 mm
Height
375 mm
Weight
3.3 kg

Appearance

Main Color
black
Housing Material
steel, glass
Metal Sheet Thickness
0.6 mm
Side Panel Window
left
Window Material
tempered glass
Front Panel Material
tempered glass
LCD Screen
none
Backlight Type
none

Compatibility

Compatible Board Form Factor
Micro-ATX
Compatible Motherboard Form Factor with Back-Connect I/O
none
Power Supply Form Factor
ATX
Power Supply Placement
behind the motherboard
Hidden Power Supply
yes
Max Power Supply Length
160 mm
Horizontal Expansion Slots
3
Vertical Expansion Slots
0
Max GPU Length
320 mm
Max CPU Cooler Height
155 mm
Number of 2.5" Drive Bays
1 pcs
Number of 3.5" Drive Bays
1 pcs
Number of 2.5"/3.5" Drive Bays
0 pcs
Number of External 3.5" Bays
0 pcs
Number of External 5.25" Bays
0 pcs

Cooling

Fans Included
none
Front Fan Support
none
Rear Fan Support
1 x 120 mm
Top Fan Support
2 x 120 mm
Bottom Fan Support
2 x 120 mm
Side Fan Support
2 x 120 mm
Liquid Cooling Support
yes
Liquid Cooling Radiator Top Mounting Size
240 mm
Rear Mounting Size for AIO Radiator
120 mm
Side Radiator Mounting Dimensions for Liquid Cooling
240 mm

Front Panel Connectors and Interfaces

I/O Panel Location
top
USB Type-A Ports
1 x USB 3.2 Gen 1, 1 x USB 2.0
USB Type-C Ports
1 x USB 3.2 Gen 1
Audio Connectors
3.5 mm jack (microphone), 3.5 mm jack (audio)
Built-In Card Reader
none

Maintenance

Side Panels Locks
side screws
CPU Cooler Mounting Cutout
yes
Back Panel Cable Management
yes
Dust Filter
none

Additional Information

Built-In Power Supply
0 W
Quiet and Vibration-Dampening Cases
none
Package Contents
fastener kit

Description

Корпус A4Tech Bloody BD-CC105 представлен в типоразмере Mini-Tower и обладает габаритами 345x270x375 мм, благодаря которым в нем можно разместить в вертикальном положении материнскую плату форм-фактора Micro-ATX. Для сборки компьютера в этом корпусе может использоваться видеокарта длиной до 320 мм, процессорный кулер высотой до 155 мм и блок питания длиной до 160 мм. Чтобы вы могли увидеть всю сборку без необходимости снятия стенки, боковая панель корпуса A4Tech Bloody BD-CC105 выполнена из прозрачного закаленного стекла.
