Characteristics Hammer drill CAT DX2150 1 for All 18V
General parameters
Type
hammer drill
Model
CAT DX2150
Technical specifications
Engine Type
brushless
Engine Location
vertical
Drill Chuck Type
SDS-plus
Spindle Lock
none
Primary Operating Modes
chisel mode, drilling, hammer drilling
Additional Operating Modes
chisel adjustment (Vario-Lock)
Speed Settings
1 pcs
Max Wood Drilling Diameter
32 mm
Max Metal Drilling Diameter
13 mm
Max Brick Drilling Diameter
26 mm
Max No-Load RPM
1080 RPM
Max Blows Per Minute
4800 BPM
Max Impact Energy
2.8 J
Functions/Modes
Reverse
yes
Power Tool Soft Start Kit
none
Anti-Vibration System
yes
Quick-Change Chuck
yes
Drilling Depth Stop
yes
Rotation/Impact Frequency Adjustment
yes
Accidental Start Lock
none
Maintaining a Constant RPM Under Load
none
Chisel Rotation
yes
Backlight
yes
Dust Extraction
none
Power
Power Supply Type
battery
Platform
CAT 1 for All 18V
Number of Batteries/Cells Included
2 pcs
Battery/Cell Type
Li-Ion
Battery Model Included
CAT DXB4
Supported Battery Models
CAT DXB4, CAT DXB2
Battery Attachment Type
slider
Battery Voltage
18 V
Battery Capacity
4 Ah
Battery Charging Indicator
yes
Charger Included
1 pcs
Additional Information
Rubber Grip
yes
Extra Grip
yes
Drill Chuck Included
none
Safety Clutch
none
Case Included
yes
Packaging Type
box
Package Contents

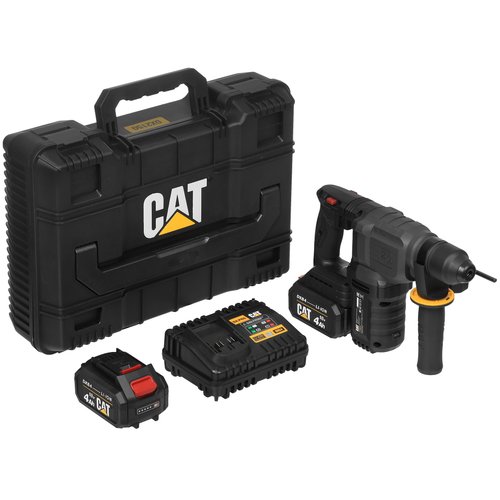

depth limiter, case, charger, documentation, battery 2 pcs., extra grip
Description
The CAT DX2150 1 for All 18V rotary hammer supports drilling, chiseling, and hammer drilling modes. The brushless motor ensures high power operation of the device and a long service life. The 2.8 J impact energy is sufficient for chasing walls for wiring and back boxes. Speed control allows drilling holes in wood, metal, and brick. Built-in lighting improves visibility in insufficient ambient lighting. The CAT DX2150 1 for All 18V features a Reverse mode. It allows changing the chuck rotation direction to release a jammed drill bit. Chisel rotation enables fixing the accessory at an angle. The auxiliary handle evenly distributes the load. The rubberized insert prevents palm slipping. An indicator displays the remaining battery charge. The included depth stop can be used to set the hole depth.
