PC case ARDOR GAMING Element WL4 black

#9316589

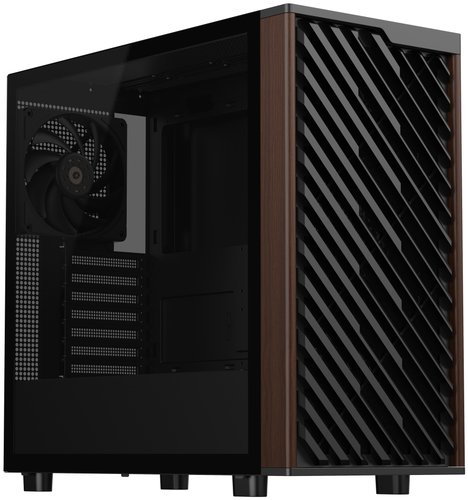

PC case ARDOR GAMING Element WL4 black

[Mid-Tower, Micro-ATX, Mini-ITX, Standard-ATX, USB 3.2 Gen 1 Type-A, USB 3.2 Gen 1 Type-C, 4 x 140 mm] details

4.47 | 15

Not on sale

Color

Accessories

  • Characteristics
  • Feedback 15
  • Instructions and files

Characteristics PC case ARDOR GAMING Element WL4 black

General parameters

Type
PC case
Model
ARDOR GAMING Element WL4

Form Factor and Dimensions

Housing Size Standard
Mid-Tower
Motherboard Orientation
vertical
Depth
489.7 mm
Width
230 mm
Height
456 mm
Weight
7.24 kg

Appearance

Main Color
black
Housing Material
steel, wood, glass, plastic
Metal Sheet Thickness
0.55 mm
Side Panel Window
left
Window Material
tempered glass
Front Panel Material
wood, plastic
LCD Screen
none
Backlight Type
none

Compatibility

Compatible Board Form Factor
Standard-ATX, Micro-ATX, Mini-ITX
Compatible Motherboard Form Factor with Back-Connect I/O
none
Power Supply Form Factor
ATX
Power Supply Placement
lower
Hidden Power Supply
yes
Max Power Supply Length
220 mm
Horizontal Expansion Slots
7
Max GPU Length
395 mm
Max CPU Cooler Height
185 mm
Number of 2.5" Drive Bays
1 pcs
Number of 3.5" Drive Bays
1 pcs
Number of 2.5"/3.5" Drive Bays
1 pcs
Number of External 3.5" Bays
0 pcs
Number of External 5.25" Bays
0 pcs

Cooling

Fans Included
4 x 140 mm
Front Fan Support
3 x 140 or 3 x 120 mm
Rear Fan Support
1 x 140 or 1 x 120 mm
Top Fan Support
2 x 140 or 3 x 120 mm
Bottom Fan Support
3 x 120 mm
Side Fan Support
2 x 120 mm
Liquid Cooling Support
yes
Front Mounting Size for AIO Radiator
280 mm, 120 mm, 240 mm, 360 mm
Liquid Cooling Radiator Top Mounting Size
280 mm, 120 mm, 240 mm, 360 mm
Rear Mounting Size for AIO Radiator
120 mm

Front Panel Connectors and Interfaces

I/O Panel Location
top
USB Type-A Ports
2 x USB 3.2 Gen 1
USB Type-C Ports
1 x USB 3.2 Gen 1
Audio Connectors
3.5 mm jack (microphone), 3.5 mm jack (audio)
Built-In Card Reader
none

Maintenance

Side Panels Locks
latches
CPU Cooler Mounting Cutout
yes
Back Panel Cable Management
yes

Additional Information

Built-In Power Supply
0 W
Quiet and Vibration-Dampening Cases
none
Package Contents
documentation, fastener kit

Description

The ARDOR GAMING Element WL4 black Mid-Tower case is compatible with Micro-ATX, Mini-ITX, and Standard-ATX motherboards. Supporting graphics cards up to 395 mm in length, it is suitable for building powerful gaming systems, PCs for video editing, 3D modeling, architectural design, and other tasks requiring high RAM capacity and strong cooling. The ATX power supply is located at the bottom. Due to this layout, hot air is immediately exhausted through the bottom openings without heating other internal components. The 2.5" and 3.5" bays allow installing one SSD and one HDD. If needed, the combined 2.5"/3.5" bay can accommodate an SSD to expand fast storage or an HDD to increase storage by up to 4 TB.
The ARDOR GAMING Element WL4 case is made of wood, plastic, steel, and glass. The design combines durability, scratch resistance, and sound insulation. The transparent panel provides a view of the lighting and helps monitor the operation of fans and the graphics card. The case can accommodate massive dual-tower coolers up to 185 mm in height, which handle graphics card cooling even during heavy overclocking while gaming or processing large datasets.
