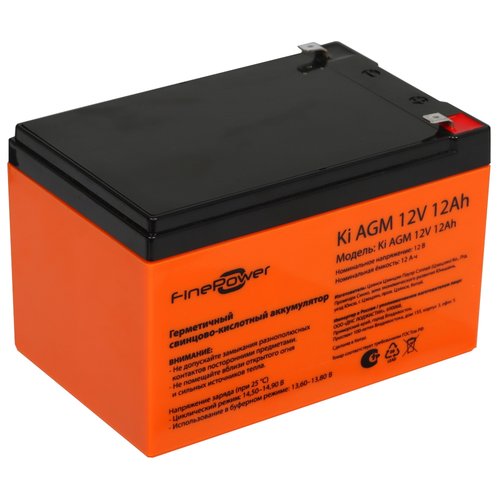

Uninterruptible power supply battery FinePower Ki AGM 12V 12Ah
[12 V, 12 Ah] details
Not on sale
Characteristics Uninterruptible power supply battery FinePower Ki AGM 12V 12Ah
General parameters
Type
uninterruptible power supply battery
Model
FinePower Ki AGM 12V 12Ah
Design
AGM
Main Color
orange
Composition
lead-acid
Technical specifications
Capacity
12 Ah
Terminals
T2/F2 (for 250 terminals)
Voltage
12 V
Max Charging Current
3 A
Max Discharge Current
180 A
Internal Resistance
24 mΩ
Number of Full Charge Cycles
500
Number of Cells in the Battery Pack
6
Service Life
five years
Operating Temperature Range
Charge
-20 °C ~ 50 °C
Storage
-20 °C ~ 50 °C
Discharge
-20 °C ~ 50 °C
Self-Discharge
3% per month at 25 °C
Additional Information
Housing Material
ABS plastic
Operating Temperature
-20 °C ~ +50°C
Carrying Handle
none
Structural Features
leakage protection
Extra
IP20 protection
Dimensions and Weight
Length
151 mm
Width
98 mm
Height
95 mm
Height Including Terminal
100 mm
Weight
3.42 kg
Dimensions and Weight in Packaging
Package Width
455 mm
Package Height
177 mm
Packaging Depth
172 mm
Description
The FinePower Ki AGM 12V 12Ah rechargeable battery for UPS is manufactured using AGM technology. The acid electrolyte is contained inside a sealed unit and does not require maintenance or refilling. Thanks to the uniform distribution of the electrolyte, charging efficiency is increased and the operating life is extended. The battery has a capacity of 12 Ah, a charging current of 3 A, and an output voltage of 12 V. The ABS plastic housing is resistant to impacts and temperature fluctuations. The FinePower AGM 12V 75Ah rechargeable battery is designed for a 5-year service life.
