short-circuit protection, deep discharge protection, overload protection
Connectors
Number and Type of Power Output Connectors
6 x IEC 320 C13 (computer)
Number of Power Output Connectors (UPS)
6
Connectors/Ports
USB, RJ-45, RS-232
Extra Ports
SNMP slot
Port Layout
vertical
Battery
Battery Type
lead-acid
Charging Time
8 h
Battery Voltage and Capacity
12V/9Ah
Replaceable Batteries
none
Battery Hot Swap
none
Number of Batteries
6 pcs
External Battery Connection
yes
Additional Information
Functions and Modes
ECO mode, standby mode, bypass
Cold Start
yes
Display
LCD display
LED Indicators
silent mode, inverter operation, load value, malfunction, fan operation, battery capacity, temperature, work mode, input/output voltage
Sound Signals
overload, low battery level, battery-powered
Noise Level
50 dB
Operating Temperature
from 0 to +40°C
Package Contents
communication cable, power cable, cable for connecting external batteries, documentation, IEC cable
Dimensions and Weight
Depth
335 mm
Width
190 mm
Height
418 mm
Weight
25.6 kg
Description

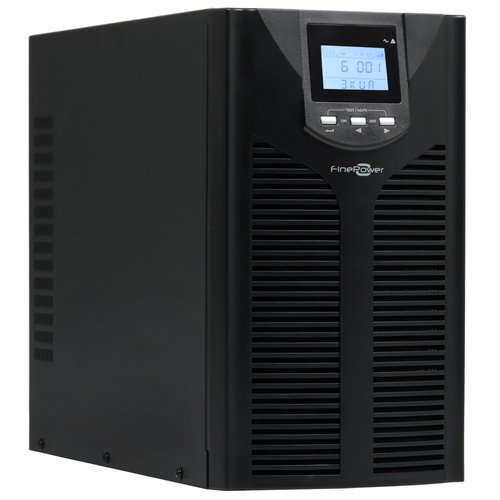

The FinePower IEC ONLINE 3000VA UPS is suitable for providing backup power simultaneously to 6 loads with a total power of up to 3000 W. This double-conversion device features zero transfer time, switching to the backup power source instantly without delays or data loss. The pure sine wave module ensures stable power supply to equipment regardless of mains power quality. As a result, the unit can be used with current-sensitive devices.
The FinePower IEC ONLINE 3000VA UPS is equipped with a monochrome display, making it convenient to monitor device status. Status indicators and audio alerts are also provided to track operating parameters. The model includes all necessary interfaces for connecting consumers and peripherals. An SNMP card can be installed into the SNMP slot for remote UPS management over the Internet. The unit features multiple protection levels: against deep discharge, short circuit, and overload, guaranteeing stable operation even when connected to an unstable power grid. The unit is powered by 6 batteries. If the runtime is insufficient, external batteries can be connected.
