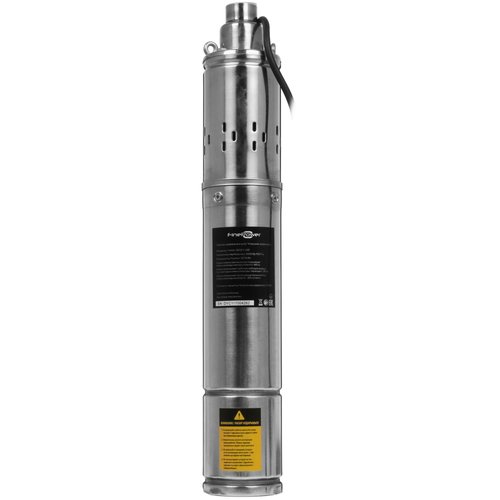

Well pump FinePower SC21-02
[screw, depth down to - 30 m, 30 L/min, head up to - 95 m] details
Not on sale
Characteristics Well pump FinePower SC21-02
General parameters
Type
well pump
Model
FinePower SC21-02
Intended Use
pure water
Basic characteristics
Power Consumption
370 W
Pump Mechanism
screw
Water Intake
top
Pipe Connection
1"
Pump Diameter
90 mm
Throughput
1.8 m³/h
Performance
30 L/min
Max Water Draw Depth
30 m
Max Head Pressure
95 m
Housing Material
stainless steel
Limitations
Allowed Liquid Temperature
35 °С
Protection
Protection Class
IP68
Dry-Run Protection
yes
Overheating Protection
yes
Float Switch
none
Power
Power Supply Type
from mains
Mains Voltage
220 V
Cable Length
20 m
Additional Information
Package Contents
documentation
Dimensions and Weight
Width
90 mm
Height
532 mm
Length
90 mm
Description
The Finepower SC21-02 borehole pump is a reliable solution for supplying clean water from boreholes and wells. With a power consumption of 370 W, the pump is characterized by a flow rate of 30 L/min and a maximum suction depth of 30 m. The pump is housed in a stainless steel casing with an IP68 protection rating, making it resistant to damage and adverse effects throughout a long service life. The diameter of the Finepower SC21-02 pump is 90 mm. Other features include overheat protection and a dry-run sensor.
