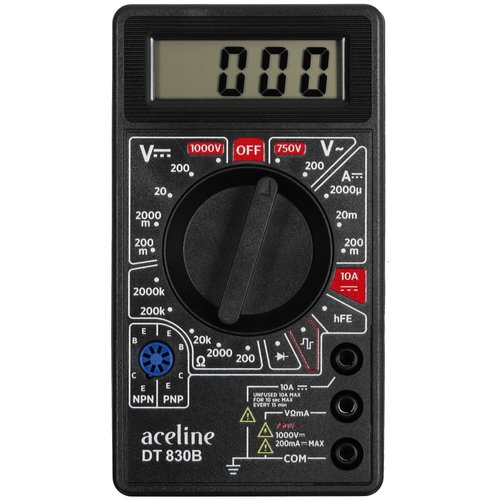

Multimeter Aceline DT 830B
[manual, up to 1000 V, accuracy - 1 %, check LEDs] details
Not on sale
Accessories
Characteristics Multimeter Aceline DT 830B
General parameters
Type
multimeter
Model
Aceline DT 830B
Types of Measurements
Types of Supported Electrical Measurements
alternating voltage (U~), direct current (I-), DC voltage (U-), resistance (R)
Transistor Gain h21
yes
Circuit Integrity Check
none
Diode Test
yes
Temperature Measurement
none
Information Display
Display Type
digital
Counts
1999
Number of Measurements Per Second
3
Basic Accuracy Rating
1 %
Measurement ranges and errors
Maximum DC Voltage, U-
1000 V
Minimum DC Voltage, U-
0.2 V
Reading Accuracy U- (% + count)
±1% + 10
Maximum AC Voltage, U~
750 V
Minimum AC Voltage, U~
200 V
Reading Accuracy U~ (% + count)
±1.2% + 10
Maximum DC Current, I-
10 A
Minimum DC Current, I-
0.2 mA
Measurement Error I- (% + Counts)
±2.5% + 10
Maximum Resistance, R
2 MΩ
Minimum Resistance, R
2000 Ω
Reading Accuracy R (% + count)
±1.2% + 8
Functions
Measurement Range Selection
manual
Memory Mode (Hold)
none
True RMS Mode
none
NCV Mode
none
Display Backlight
none
Auto Shut-Off
none
Sound Cue
none
Safety and Operating Conditions
Max Operating Voltage
1000 V
Safety Standards
CAT II 1000 V
Operating Temperature Range
from 0 to +40 °C
Operating Humidity Range
0% - 75%
Power
Power Supply Type
battery
Number of Batteries/Cells Included
1 pcs
Battery/Cell Type
E
Battery Voltage
9 V
Additional Information
Package Contents
current probes, E battery, documentation
Part of the State Register
none
Dimensions and Weight
Length
28 mm
Width
70 mm
Height
126 mm
Weight
0.15 kg
Packaged Length
30 mm
Packaged Width
105 mm
Packaged Height
1705 mm
Packaged Weight
0.184 kg
Description
The Aceline DT 830B multimeter is used to measure DC and AC voltage, resistance, and current. The device supports diode testing and current gain measurement functions. All parameters are displayed on a digital screen. A rotary switch located on the front side is used to select functions. The Aceline DT 830B multimeter operates autonomously on one 9 V 9-volt (PP3/Krona) battery.
