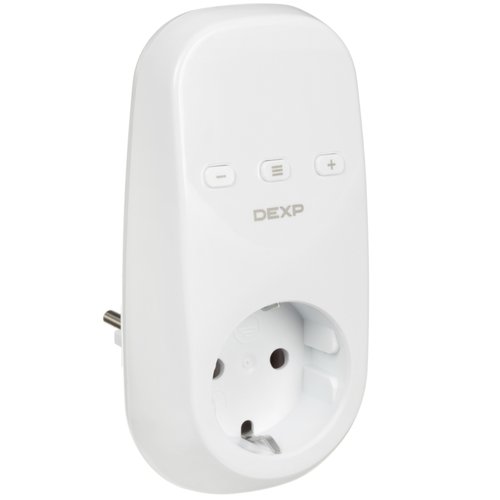

Voltage relay DEXP PR116 white

#5454216

Voltage relay DEXP PR116 white

[sockets - 1, 16 A, 3000 W] details

Not on sale

Accessories

  • Characteristics
  • Feedback 17
  • Instructions and files

Characteristics Voltage relay DEXP PR116 white

General parameters

Type
voltage relay
Model
DEXP PR116
Main Color
white
Cable Length
0 m
Case
heat resistant
Housing Material
plastic

Basic

Plug Type
Type F (Schuko)
Socket Type
Type F (Schuko socket)
Individual/Per-Outlet Control
none
Grounding
yes
For UPS
none

Sockets (plug)

Total Number of Sockets
1
Max Connections
1

USB

USB Port
none
Number of USB Ports
0 pcs
Quick Charging Support
none

Technical parameters

Rated Voltage
100-420 V
Operating Frequency
50 Hz
Max Connected Load Power
3000 W
Max Load Current
16 A
Safety Features
voltage surge protection

Other

Cable Organizer
none
Outlet Protective Shutters
none
Display
operation indicator
Dust and Moisture Protection
IP20
Wall-Mountable
none
Extra
50000 switching cycles under load, 20,000,000 switching cycles without load

Dimensions and Weight

Weight
0.16 kg

Description

The DEXP PR116 voltage relay is used to protect electrical appliances from mains surges. An indicator light signals that the device is operating properly. IP20 housing protection prevents objects larger than 12.5 mm from entering the enclosure. In case of overvoltage, the unit automatically cuts off after 0.03 sec.
The service life of the DEXP PR116 under load is rated for 50,000 cycles. When used in automation systems for signaling without switching current loads, its lifespan can reach up to 20 million cycles.
