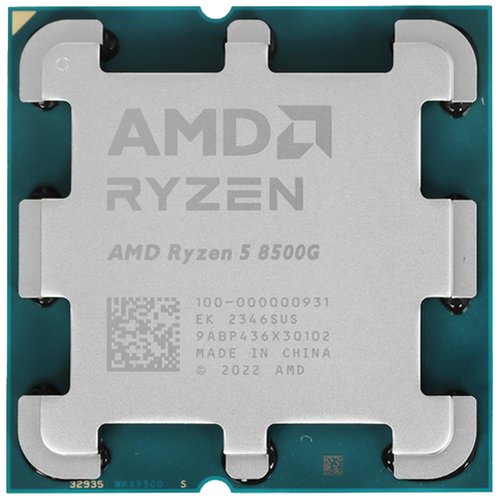

CPU AMD Ryzen 5 8500G OEM

#5447553

CPU AMD Ryzen 5 8500G OEM

[AM5, 2P x 4.1 GHz, 4E x 3.2 GHz, L2 - 6 MB, L3 - 16 MB, 2 х DDR5-5200 MHz, AMD Radeon 740M, TDP 65 W] details

4.76 | 90

Not on sale

Accessories

  • Characteristics
  • Feedback 90

Characteristics CPU AMD Ryzen 5 8500G OEM

General parameters

Model
AMD Ryzen 5 8500G
Socket
AM5
Manufacturer Code
[100-000000931]
Release Year
2024
Cooling System Included
none
Thermal Interface Material Included
none

Core and Architecture

Total Number of Cores
6
Number of Performance Cores
2
Number of Efficiency Cores
4
Max CPU Threads
12
L2 Cache Size
6 MB
L3 Cache Size
16 MB
Technical Process
TSMC 4nm FinFET
Core
AMD Phoenix

Frequency and Overclocking Capability

CPU Base Clock
4.1 GHz
Max Turbo Boost Clock
5 GHz
Efficient Cores Base Clock
3.2 GHz
Efficient Cores Turbo Clock
3.7 GHz
Unlocked Multiplier
none

RAM Parameters

Memory Type
DDR5
Max RAM Memory Support
256 GB
Channel Count
2
RAM Frequency
DDR5-5200
ECC Mode Support
none

Thermal characteristics

Thermal Design Power (TDP)
65 W
Base Thermal Design Power (TDP Rating)
65 W
Max CPU Temperature
95 °С

Graphics Core

Integrated Graphics
yes
GPU Series
AMD Radeon 740M
GPU Max Clock Speed
2800 MHz
Compute/Execution Units
4
Stream Processors (Shading Units)
256

Bus and Controllers

Integrated PCIe Controller
PCIe 4.0
PCIe Lane Count
10 pcs

Additional Information

Virtualization
yes
Features, Additional
AMD FreeSync support

Description

The AMD Ryzen 5 8500G OEM processor is designed for entry-level gaming PCs as well as versatile office and home computers. The model features 6 cores: 2 performance cores and 4 efficiency cores. The CPU is based on the AMD Zen 4 architecture and manufactured using the TSMC 4nm FinFET process. A key feature of the processor is its integrated graphics core, making a discrete graphics card optional. The AMD Radeon 740M GPU operates at frequencies up to 2800 MHz.
The AMD Ryzen 5 8500G OEM processor installs into the AM5 socket. The base CPU frequency is 4.1 GHz, with a maximum boost frequency of 5 GHz. A 6 MB L2 cache and a 16 MB L3 cache speed up all computing operations. Virtualization technology support expands the computer's capabilities when working with virtual machines. The integrated PCIe controller provides 10 lanes.
The processor is compatible with DDR5 memory up to 256 GB. The maximum RAM speed is 5200 MHz. The CPU TDP is 65 W, allowing the use of a compact, low-noise cooler.
