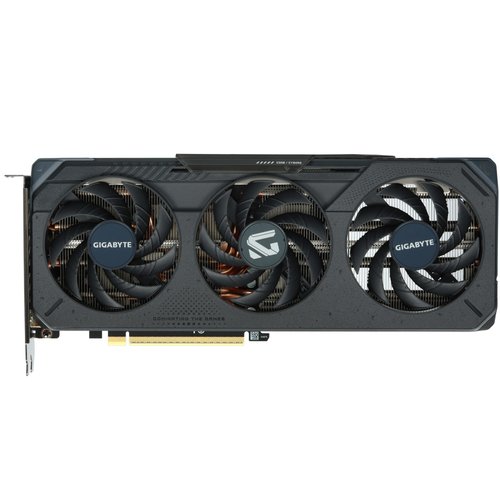

Graphics card GIGABYTE AMD Radeon RX 9060 XT GAMING OC [GV-R9060XTGAMING OC-16GD]

#5628948

Graphics card GIGABYTE AMD Radeon RX 9060 XT GAMING OC [GV-R9060XTGAMING OC-16GD]

[PCIe 5.0, 16 GB GDDR6, 128 bit, 2 x DisplayPort, HDMI] details

4.86 | 522
7 690 000 UZS
Buy
Avail in 1 shop
Warranty: 12 mos.

Accessories

  • Characteristics
  • Feedback 522
  • Instructions and files

Characteristics Graphics card GIGABYTE AMD Radeon RX 9060 XT GAMING OC [GV-R9060XTGAMING OC-16GD]

Factory specifications

Manufacture country
China

General parameters

Type
graphics card
Model
GIGABYTE AMD Radeon RX 9060 XT GAMING OC
Manufacturer Code
[GV-R9060XTGAMING OC-16GD]
Color
black
Designed for Mining (Cryptocurrency Mining)
none
LHR
none

Basic parameters

Graphics Processor
Radeon RX 9060 XT
Microarchitecture
AMD RDNA 4
Technical Process
5 nm

Video processor specifications

Turbo Frequency
3320 MHz
Number of Universal Processors (ALU)
2048
Texture Blocks
128
Number of Raster Operations Units
64
Ray Tracing Support
yes
Ray Tracing Hardware Acceleration (RT Cores)
32
Tensor Cores
0

Video memory specifications

Video Memory Size
16 GB
Memory Type
GDDR6
Memory Bus Bit Depth
128 bit
Max Memory Bandwidth
320 GB/s
Effective Memory Frequency
20000 MHz

Image Output

Type and Number of Video Interfaces
HDMI, 2 x DisplayPort
HDMI Version
2.1b
DisplayPort Version
2.1a
Multi-Monitor Setup
3
Max Resolution
7680x4320 (8K Ultra HD)

Connection

Connection Type
PCIe 5.0
Connector Form Factor
PCIe x16
Number of PCI Express Lanes
16
Extra Power Connectors
8 pin
Recommended Power Supply
450 W

Cooling System

Cooling Type
active air
Type and Number of Installed Fans
3-axial
Liquid Cooling Radiator
none

Additional Information

GPU RGB Lighting
yes
RGB Lighting Sync
GIGABYTE Control Center
LCD Screen
none
Dual BIOS Switch
none
Features, Additional
metal backplate, Infinity Cache - 32 Mb
Package Contents
documentation

Dimensions and Weight

Low Profile Card
none
Number of Occupied Expansion Slots
2
GPU Length
281 mm
Graphics Card Width
118 mm
GPU Depth
40 mm

Description

Игровая видеокарта GIGABYTE AMD Radeon RX 9060 XT GAMING OC с 16 ГБ памяти GDDR6 поддерживает запуск видео в формате 8K Ultra HD и одновременную работу с четырьмя мониторами. Технология трассировки лучей делает графику более реалистичной благодаря естественной прорисовке света и теней. Модель с тремя вентиляторами дополнена металлическим бэкплейтом для ускоренного охлаждения поверхности.
