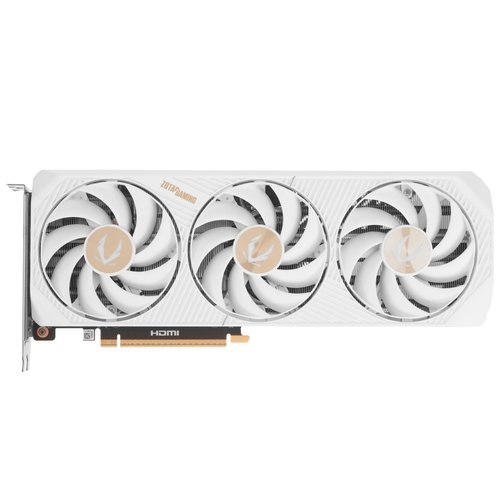

Graphics card Zotac GeForce RTX 5070 GAMING AMP White Edition [ZT-B50700FQ-10P]

#5632858

Graphics card Zotac GeForce RTX 5070 GAMING AMP White Edition [ZT-B50700FQ-10P]

[PCIe 5.0, GPU 2325 MHz, 12 GB GDDR7, 192 bit, 3 x DisplayPort, HDMI] details

4.55 | 11

Not on sale

Accessories

  • Characteristics
  • Feedback 11

Characteristics Graphics card Zotac GeForce RTX 5070 GAMING AMP White Edition [ZT-B50700FQ-10P]

General parameters

Type
graphics card
Model
Zotac GeForce RTX 5070 GAMING AMP White Edition
Manufacturer Code
[ZT-B50700FQ-10P]
Color
white
Designed for Mining (Cryptocurrency Mining)
none
LHR
none

Basic parameters

Graphics Processor
GeForce RTX 5070
Microarchitecture
NVIDIA Blackwell
Technical Process
5 nm

Video processor specifications

GPU Core Clock
2325 MHz
Turbo Frequency
2587 MHz
Number of Universal Processors (ALU)
6144
Texture Blocks
192
Number of Raster Operations Units
80
Ray Tracing Support
yes
Ray Tracing Hardware Acceleration (RT Cores)
48
Tensor Cores
192

Video memory specifications

Video Memory Size
12 GB
Memory Type
GDDR7
Memory Bus Bit Depth
192 bit
Max Memory Bandwidth
672 GB/s
Effective Memory Frequency
28000 MHz

Image Output

Type and Number of Video Interfaces
HDMI, 3 x DisplayPort
HDMI Version
2.1b
DisplayPort Version
2.1b
Multi-Monitor Setup
4
Max Resolution
7680x4320 (8K Ultra HD)

Connection

Connection Type
PCIe 5.0
Connector Form Factor
PCIe x16
Number of PCI Express Lanes
16
Extra Power Connectors
16 pin (12V-2x6)
Recommended Power Supply
650 W
Power Consumption
250 W

Cooling System

Cooling Type
active air
Type and Number of Installed Fans
3-axial
Liquid Cooling Radiator
none

Additional Information

GPU RGB Lighting
yes
RGB Lighting Sync
ZOTAC SPECTRA 2.0
LCD Screen
none
Features, Additional
L2 cache - 48 Mb, AI performance - 1005 TOPs
Package Contents
16-pin to 2x8-pin adapter, documentation, graphics card support bracket

Dimensions and Weight

Low Profile Card
none
Number of Occupied Expansion Slots
2.1
GPU Length
304 mm
Graphics Card Width
116 mm
GPU Depth
41.6 mm

Description

The Zotac GeForce RTX 5070 GAMING AMP White Edition [ZT-B50700FQ-10P] graphics card with 13 GB of GDDR7 memory and boost clock up to 2587 MHz is suitable for building gaming PCs. The processor performance is sufficient for running AAA games at ultra settings and 8K video editing. AI TOPS technology processes AI tasks faster and more accurately compared to traditional CPUs and GPUs, enabling machine learning workloads. Ray tracing simulates realistic lighting in games, making game scenes lifelike. The model outputs images to the screen in resolutions up to 7680×4320. Up to four monitors can be connected simultaneously via DisplayPort and HDMI ports.
The Zotac GeForce RTX 5070 GAMING AMP White Edition [ZT-B50700FQ-10P] graphics card is equipped with three axial fans. They provide fast cooling and quiet operation. The ZOTAC SPECTRA 2.0 system allows configuring RGB lighting on the front and rear fan panels separately or synchronously. A support bracket is included in the package.
